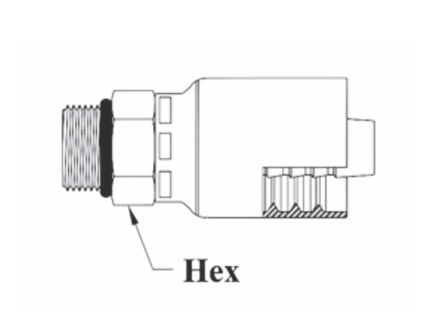

A11-6x8 Couplamatic A Series Coupling - ORB - Male Solid - 3/8" Hose ID - 3/4x16 Thread

A11-6x8 by Couplamatic | A Series Coupling | 3/8" Hose ID x 3/4x16 Thread ORB Male Solid | Straight

Save $3.33 Save $3.33
$8.32
$8.32 - $8.32
$8.32
$4.99
$4.99 - $4.99
$4.99

Couplamatic Systems Inc.
A Series - ORB - Male Solid
Specifications for Variant SKU: A11-6x8 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/2in Male O-Ring Boss, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A11-4x4 1/4" 7/16x20 1/4" 9/16" 1AA4MB4 04Z-P04
A11-4x5 1/4" 1/2x20 5/16" 5/8" - 04Z-P05
A11-4x6 1/4" 9/16x18 3/8" 11/16" 1AA6MB4 04Z-P06
A11-6x6 3/8" 9/16x18 3/8" 11/16" 1AA6MB6 06Z-P06
A11-6x8 3/8" 3/4x16 1/2" 7/8" 1AA8MB6 06Z-P08
A11-8x8 1/2" 3/4x16 1/2" 7/8" 1AA8MB8 08Z-P08
A11-8x10 1/2" 7/8x14 5/8" 1" 1AA10MB8 08Z-P10
A11-8x12 1/2" 1-1/16x12 3/4" 1-1/4" 1AA12MB8 08Z-P12
A11-10x12 5/8" 1-1/16x12 3/4" 1-1/4" - 10Z-P12
A11-12x12 3/4" 1-1/16x12 3/4" 1-1/4" 1AA12MB12 12Z-P12

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
