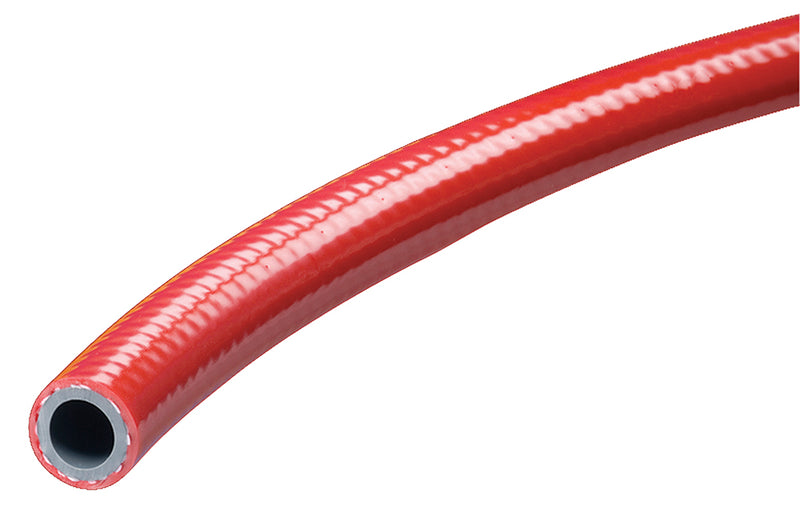

A1144-04X500 Kuri-Tec by Kuriyama | A1144 Series | Special Purpose PVC/Polyurethane Air Hose | 1/4" ID | .460" OD | Red | 500ft Reel

A1144-04X500 Kuri-Tec by Kuriyama | A1144 Series | Special Purpose PVC/Polyurethane Air Hose | 1/4" ID | .460" OD | Red | 500ft Reel

Save $99.27 Save $99.27
$525.27
$525.27 - $525.27
$525.27
$426.00
$426.00 - $426.00
$426.00

Kuri Tec® by Kuriyama
A1144 Series | Special Purpose PVC/Polyurethane Air Hose

This special blended hose is ideal for general air and water applications that need to operate at higher temperatures than traditional PVC hoses.

Package Quantity: 500 Foot

Specifications for Variant SKU: A1144-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A1144 Series
Hose Color(s): Red
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.460in
Tubing Construction: PVC/Polyurethane Blend
Cover Construction: PVC/Polyurethane Blend
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Pin Pricked Hose Cover

SPECIFICATIONS

Applications: Transfer of air and water.
Ideal for applications in rugged or higher temperature environments.
Induction welding tubing lines.
Injection molding coolant lines.
Transfer of deionized water.
Transfer of transmission and power steering fluids.
Lubrication/air drop lines.
Robotic and pneumatic air lines.
Automotive assembly line air hoses.
Not recommended for transfer of brake fluids.
Tube: Grey PVC/polyurethane alloy. Reinforcement: High tensile strength yarn.
Cover: PVC/polyurethane alloy. Pin-pricked. Service Temperature Range: 0°F (-18°C) to +185°F (+85°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Grey core tube has excellent cut resistance... complies with ARPM's Class A designation for high oil resistance.
  • Highly abrasion-resistant alloy jacket.
  • Smooth, non-marking pin-pricked cover.
  • Good flexibility over a wide temperature range.
  • Good fitting retention at elevated temperatures.
  • Silicone-free materials.
  • One-piece lengths.
  • RoHS compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
A1144 Series | Red
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- A1144-04X500 1/4" 6.5mm 0.460" 11.7mm 300 PSI 200 PSI
- A1144-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 200 PSI
- A1144-08X500 1/2" 12.7mm 0.770" 19.6mm 300 PSI 200 PSI
A1144-12X300 - 3/4" 19.0mm 1.060" 26.9mm 300 PSI 150 PSI
A1141 Series | Yellow
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- A1141-04X500 1/4" 6.5mm 0.460" 11.7mm 300 PSI 200 PSI
- A1141-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 200 PSI
- A1141-08X500 1/2" 12.7mm 0.770" 19.6mm 300 PSI 200 PSI
A1141-12X300 - 3/4" 19.0mm 1.060" 26.9mm 300 PSI 150 PSI
A1146 Series | Blue
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- A1146-04X500 1/4" 6.5mm 0.460" 11.7mm 300 PSI 200 PSI
- A1146-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 200 PSI
- A1146-08X500 1/2" 12.7mm 0.770" 19.6mm 300 PSI 200 PSI
A1146-12X300 - 3/4" 19.0mm 1.060" 26.9mm 300 PSI 150 PSI
A1148 Series | Grey
Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(50°C)
- A1148-04X500 1/4" 6.5mm 0.460" 11.7mm 300 PSI 200 PSI
- A1148-06X500 3/8" 9.5mm 0.625" 15.9mm 300 PSI 200 PSI
- A1148-08X500 1/2" 12.7mm 0.770" 19.6mm 300 PSI 200 PSI
A1148-12X300 - 3/4" 19.0mm 1.060" 26.9mm 300 PSI 150 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
