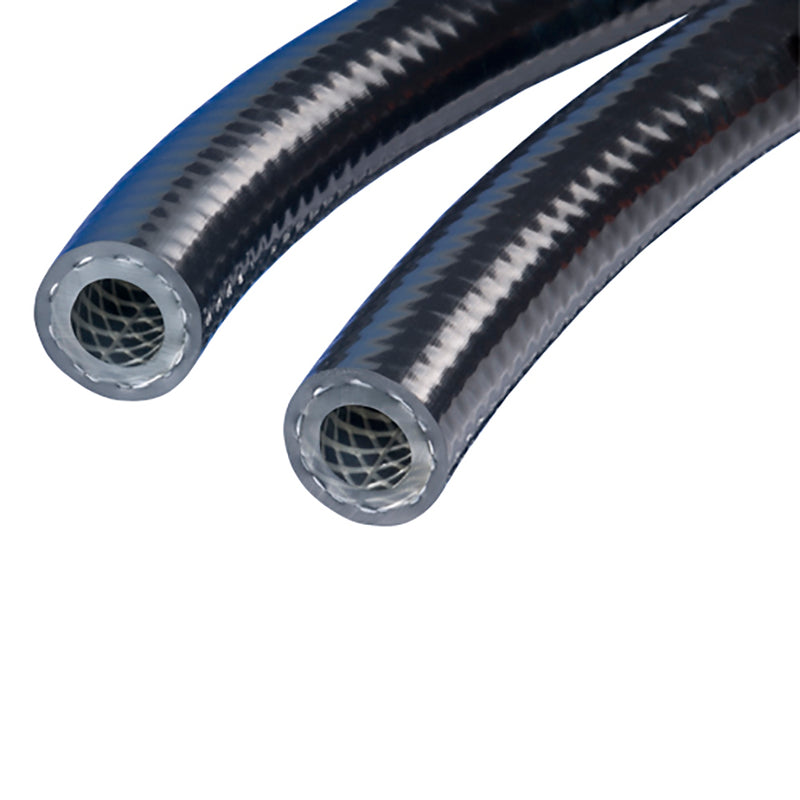

A1243-04X500 Kuri-Tec by Kuriyama | A1243 Series | Non-Toxic PVC Air Breathing Hose | 1/4" ID | .500" OD | Black | 500ft Length

A1243-04X500 Kuri-Tec by Kuriyama | A1243 Series | Non-Toxic PVC Air Breathing Hose | 1/4" ID | .500" OD | Black | 500ft Length

Save $143.94 Save $143.94
$773.94
$773.94 - $773.94
$773.94
$630.00
$630.00 - $630.00
$630.00

Kuri Tec® by Kuriyama
A1243 Series | Non-Toxic PVC Air Breathing Hose

A specially-designed non-toxic air breathing hose that provides low temperature flexibility and low odor.

Package Quantity: 500 Foot

Specifications for Variant SKU: A1243-04X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A1243 Series
Hose Color(s): Black
Internal Diameter: 0.25in - 1/4in
Outer Diameter: 0.50in
Tubing Construction: PVC
Cover Construction: PVC
Applicable Specs & Approvals: FDA 21 CFR Part 170.199, NIOSH, RoHS Compliant

SPECIFICATIONS

Applications: General Type C air supply lines.
Paint spray booths.
Indoor, in-plant air service.
Outdoor, open air service.
Tube: Clear PVC compound, formulated in compliance with FDA and RoHS requirements. Reinforcement: High tensile strength yarn.
Cover: Non-toxic, U. V. and weather resistant black PVC compound. Service Temperature Range: -15°F (-26°C) to +150°F (+65°C)
Specifications: FDA
NIOSH
Phthalate Free
RoHS
Other Features:
  • Good low temperature flexibility.
  • Low odor, compared with traditional rubber hose.
  • Heavy wall construction matches the dimensions of rubber hose.
  • Light-wall version available (1/4" size).
  • One-piece lengths.
  • Hose meets NIOSH requirements for Type C respirator.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
  • NOTE: NIOSH only certifies complete breathing respirators and does not issue certifications on individual components, such as hoses. All replacement hoses for NIOSH-certified apparatus must have prior NIOSH certification as a part of that unit.
Part Number Nominal ID Nominal OD Max. Working
Pressure		 Length
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A1243H-04X300 1/4" 6.5mm 0.625" (Heavy Wall) 15.9mm 250 PSI 150 PSI 300 ft
A1243-04X500 1/4" 6.5mm 0.500" 12.7mm 250 PSI 150 PSI 500 ft
A1243H-06X300 3/8" 9.5mm 0.688" 17.5mm 250 PSI 150 PSI 300 ft
A1243H-08X300 1/2" 12.7mm 0.840" 21.3mm 250 PSI 150 PSI 300 ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
