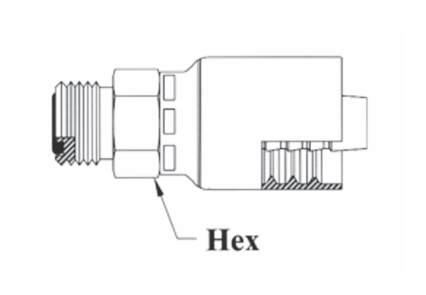

A29-4x4 Couplamatic A Series Coupling - O-Ring Face Seal (ORF) - Male Solid - 1/4" Hose ID - 9/16x18 Thread

A29-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x 9/16x18 Thread O-Ring Face Seal | ORF Male Solid | Straight

Save $0.95 Save $0.95
$8.58
$8.58 - $8.58
$8.58
$7.63
$7.63 - $7.63
$7.63

Couplamatic Systems Inc.
A Series - O-Ring Face Seal (ORF) - Male Solid
Specifications for Variant SKU: A29-4x4 Couplamatic
Series: A Series
Shape (Orientation): Straight
Ends Configuration: 1/4in Male O-Ring Face Seal, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A29-4x4 1/4" 9/16x18 1/4" 5/8" 1AA4MR4 04Z-E64
A29-6x6 3/8" 11/16x16 3/8" 3/4" 1AA6MR6 06Z-E66
A29-6x8 3/8" 13/16x16 1/2" 7/8" 1AA8MR6 06Z-E68
A29-8x8 1/2" 13/16x16 1/2" 7/8" 1AA8MR8 08Z-E68
A29-8x10 1/2" 1x14 5/8" 1-1/16" 1AA10MR8 08Z-E70
A29-10x10 5/8" 1x14 5/8" 1-1/16" - 10Z-E70
A29-10x12 5/8" 1-3/16x12 3/4" 1-1/4" - 10Z-E72
A29-12x12 3/4" 1-3/16x12 3/4" 1-1/4" 1AA12MR12 12Z-E72

- Couplings are capped with O-ring included.

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
