A4143-06X500 Kuri-Tec by Kuriyama | A4143 Series | Medium Pressure Paint Fluid Transfer Hose | 3/8" ID | .690" OD | Black | 500ft Length

A4143-06X500 Kuri-Tec by Kuriyama | A4143 Series | Medium Pressure Paint Fluid Transfer Hose | 3/8" ID | .690" OD | Black | 500ft Length

Save $250.43 Save $250.43
$1,120.43
$1,120.43 - $1,120.43
$1,120.43
$870.00
$870.00 - $870.00
$870.00

Kuri Tec® by Kuriyama

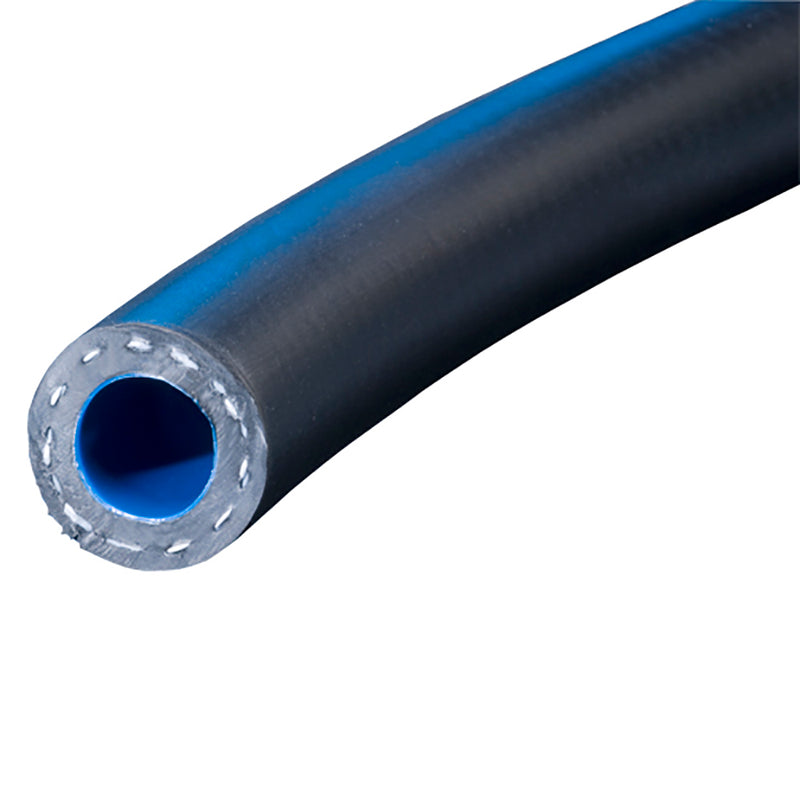

A4143 Series | Medium Pressure Paint Fluid Transfer Hose

Lightweight polyethylene-lined rubber blend hose that is the ideal choice for handling paint and paint-related products in a variety of applications.

Package Quantity: 500 Foot

Specifications for Variant SKU: A4143-06X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A4143 Series
Hose Color(s): Black
Internal Diameter: 0.38in
Outer Diameter: 0.690in
Tubing Construction: LLDPE/Rubber Blend
Cover Construction: Rubber Blend
Applicable Specs & Approvals: RoHS Compliant

SPECIFICATIONS

Applications: Lower pressure transfer of enamels, lacquers and other finishes.
Robotic paint spraying equipment.
Manual paint spraying.
Spraying of automobile "rustproofing" fluids.
Low temperature transfer of chemicals.
Tube: Co-extruded blue LLDPE/rubber blend. Reinforcement: High tensile strength yarn.
Cover: Black rubber blend compound; Branded "Paint Fluid". Service Temperature Range: -40°F (-40°C) to +125°F (+52°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Excellent resistance to paint fluids, lacquers and solvents.
  • Excellent flexibility.
  • Lightweight.
  • Silicone-free.
  • One-piece lengths.
  • Compatible with popular spray fittings, such as Binks and DeVilbiss.
  • Excellent cold weather properties.
  • RoHS(16) compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Compatible with popular spray fittings, such as Binks and DeVilbiss.
  • CAUTION: NOT FOR USE WITH HOT PAINT. DO NOT EXCEED TEMPERATURE OF 125°F (+52°C).
  • WARNING: IMMERSION OF THE HOSE IN SOLVENTS FOR AN EXTENDED PERIOD OF TIME IS NOT RECOMMENDED DUE TO POTENTIAL SWELLING OF THE HOSE JACKET.
Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A4143-04X500 - - A4143-04X100 1/4" 6.5mm 0.500" 12.7mm 175 PSI 85 PSI
A4143-06X500 - - A4143-06X100 3/8" 9.5mm 0.690" 17.3mm 175 PSI 85 PSI
A4143-08X500 - - A4143-08X100 1/2" 12.7mm 0.875" 22.2mm 175 PSI 85 PSI
- A4143-12X300 - A4143-12X100 3/4" 19.0mm 1.188" 30.2mm 150 PSI 75 PSI
- - A4143-16X200 A4143-16X100 1" 25.4mm 1.500" 38.1mm 125 PSI 60 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
