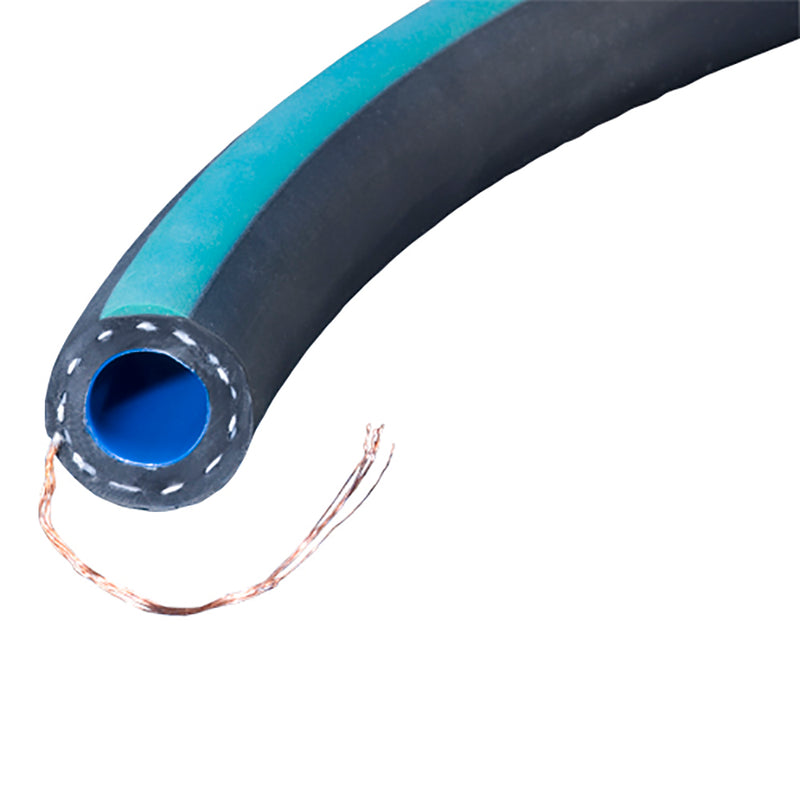

A4143S-08X100 Kuri-Tec by Kuriyama | A4143S Series | Medium Pressure Paint Fluid Transfer Hose with Static Wire | 1/2" ID | .875" OD | Black | 100ft Length

A4143S-08X100 Kuri-Tec by Kuriyama | A4143S Series | Medium Pressure Paint Fluid Transfer Hose with Static Wire | 1/2" ID | .875" OD | Black | 100ft Length

Save $75.48 Save $75.48
$435.48
$435.48 - $435.48
$435.48
$360.00
$360.00 - $360.00
$360.00

Kuri Tec® by Kuriyama
A4143S Series | Medium Pressure Paint Fluid Transfer Hose with Static Wire

Lightweight polyethylene-lined rubber blend hose that is the ideal choice for handling paint and paint-related products in a variety of applications.

Package Quantity: 100 Foot

Specifications for Variant SKU: A4143S-08X100 Kuriyama | 100 |
Brand: Kuri Tec
Series: A4143S Series
Hose Color(s): Black & Blue
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.875in
Tubing Construction: LLDPE/Rubber Blend
Cover Construction: Rubber Blend
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Ground Wire in Hose

SPECIFICATIONS

Applications: Lower pressure transfer of enamels, lacquers and other finishes.
Robotic paint spraying equipment.
Manual paint spraying.
Spraying of automobile "rustproofing" fluids.
Low temperature transfer of chemicals.
Tube: Co-extruded blue LLDPE/rubber blend. Reinforcement: High tensile strength yarn. Embedded copper wire for static conductivity (see note below).
Cover: Black rubber blend compound; Branded "Paint Fluid". Service Temperature Range: -40°F (-40°C) to +125°F (+52°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Excellent resistance to paint fluids, lacquers and solvents.
  • Excellent flexibility.
  • Lightweight.
  • Silicone-free.
  • One-piece lengths.
  • Compatible with popular spray fittings, such as Binks and DeVilbiss.
  • Excellent cold weather properties.
  • Static conductivity.
  • RoHS compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures. Compatible with popular spray fittings, such as Binks and DeVilbiss.
  • Caution: This product is designed to dissipate static electricity when the metal wire is properly grounded through the fitting or by other means.
  • CAUTION: NOT FOR USE WITH HOT PAINT. DO NOT EXCEED TEMPERATURE OF 125°F (+52°C).
  • WARNING: IMMERSION OF THE HOSE IN SOLVENTS FOR AN EXTENDED PERIOD OF TIME IS NOT RECOMMENDED DUE TO POTENTIAL SWELLING OF THE HOSE JACKET.
Part Number
100ft		 Part Number
200ft		 Part Number
300ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A4143S-04X100 - - A4143S-04X500 1/4" 6.5mm 0.500" 12.7mm 175 PSI 85 PSI
A4143S-06X100 - - A4143S-06X500 3/8" 9.5mm 0.690" 17.3mm 175 PSI 85 PSI
A4143S-08X100 - - A4143S-08X500 1/2" 12.7mm 0.875" 22.2mm 175 PSI 85 PSI
A4143S-12X100 - A4143S-12X300 - 3/4" 19.0mm 1.188" 30.2mm 150 PSI 75 PSI
A4143S-16X100 A4143S-16X200 - - 1" 25.4mm 1.500" 38.1mm 125 PSI 60 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
