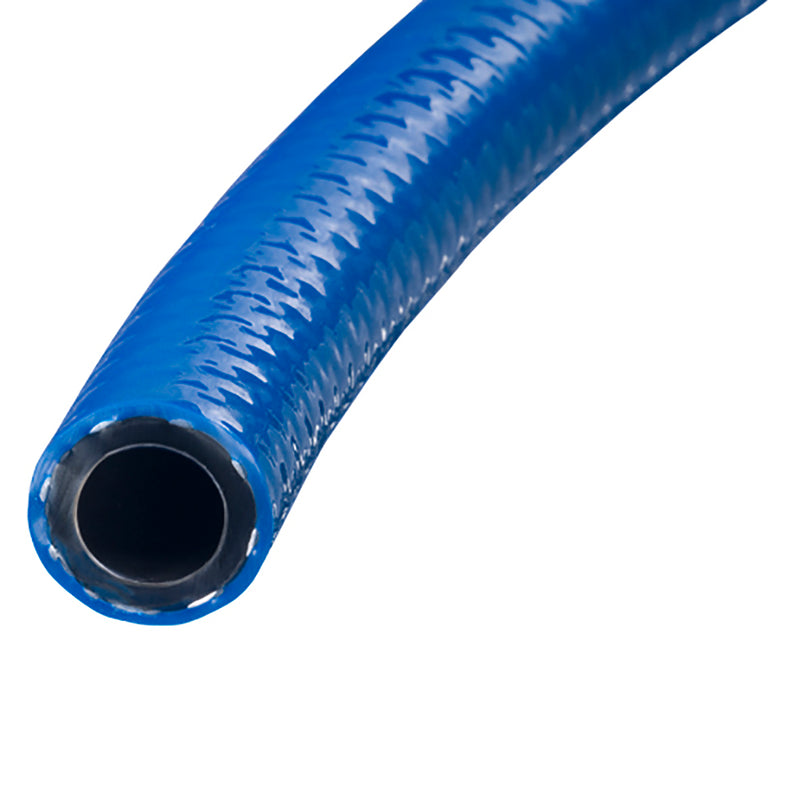

A4176-08X500 Kuri-Tec by Kuriyama | A4176 Series | Conductive PVC Air Hose with Polyurethane Cover | 1/2" ID | .813" OD | Blue | 500ft Length Reel

A4176-08X500 Kuri-Tec by Kuriyama | A4176 Series | Conductive PVC Air Hose with Polyurethane Cover | 1/2" ID | .813" OD | Blue | 500ft Length Reel

Save $475.19 Save $475.19
$1,993.19
$1,993.19 - $1,993.19
$1,993.19
$1,518.00
$1,518.00 - $1,518.00
$1,518.00

Kuri Tec® by Kuriyama
A4176 Series | Conductive PVC Air Hose with Polyurethane Cover

Uniquely different PVC air hose that prevents static build-up without the need of a static wire.

Package Quantity: 500 Foot

Specifications for Variant SKU: A4176-08X500 Kuriyama | 500 |
Brand: Kuri Tec
Series: A4176 Series
Hose Color(s): Blue
Internal Diameter: 0.50in - 1/2in
Outer Diameter: 0.813in
Tubing Construction: PVC
Cover Construction: Polyurethane
Special Properties: Conductive Tube

SPECIFICATIONS

Applications: In-plant air service where static dissipation is required. Air lines for painting equipment. Applications requiring the use of grounded pneumatic tools.
Tube: Co-extruded electrically-conductive PVC. Reinforcement: Spiral polyester yarn.
Cover: Blue polyurethane for superior abrasion resistance. Service Temperature Range: +14° F (-10° C) to +150° F (+65° C)
Specifications: Phthalate Free
Other Features:
  • Continuous flexible conductive liner assures contact with fittings, without special preparation or clamping techniques.
  • No wires to break when the hose is flexed.
  • Distinctive color and branding allows easy identification.
  • Silicone-free.
  • One-piece lengths.
  • Branded as "Conductive Air".
  • Excellent chemical and abrasion resistance afforded by polyurethane cover.
  • Non-marking non-perforated cover.
  • Phthalate Free!
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Electrical Data:
  • Resistance is less than 100,000 ohms per foot when tested with an ohmmeter, with normal open-circuit output voltage of 500 VDC.
  • Note: Conductivity is through the inner liner only. To dissipate static electricity, the hose must be fitted with a grounded conductive coupling. When measured through the wall of the hose, the product demonstrates electrical insulation.
Part Number
100ft		 Part Number
500ft		 Nominal ID Nominal OD Max. Working
Pressure
in mm in mm @70°F
(20°C)		 @122°F
(66°C)
A4176-04X500 A4176-04X100 1/4" 6.5mm 0.500" 12.7mm 300 PSI 180 PSI
A4176-06X500 A4176-06X100 3/8" 9.5mm 0.625" 15.9mm 300 PSI 180 PSI
A4176-08X500 A4176-08X100 1/2" 12.7mm 0.813" 20.7mm 300 PSI 180 PSI

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
