A43-4x4 Couplamatic A Series Coupling - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel - 1/4" Hose ID - G-1/4-19 Thread - 1/4" BSPP

A43-4x4 by Couplamatic | A Series Coupling | 1/4" Hose ID x G-1/4-19 Thread 60° Cone Female Swivel | 1/4" BSPP | 45° Elbow

Save $10.41 Save $10.41
$26.03
$26.03 - $26.03
$26.03
$15.62
$15.62 - $15.62
$15.62

Couplamatic Systems Inc.
A Series - BSPP - British Standard Parallel 60° Cone - 45° Bend Female Swivel
Specifications for Variant SKU: A43-4x4 Couplamatic
Series: A Series
Shape (Orientation): 45 Degree
Ends Configuration: 1/4in Female BSPP, 1/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.

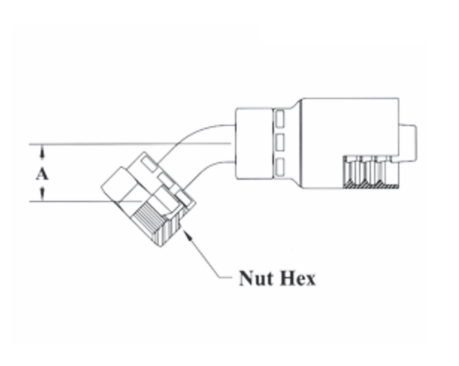

Part Number Hose ID BSPP Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Weatherhead Z
A43-4x4 1/4" 1/4" G-1/4-19 0.91" 3/4" 04Z-44P
A43-6x6 3/8" 3/8" G-3/8-19 0.90" 7/8" 06Z-46P
A43-8x8 1/2" 1/2" G-1/2-14 0.87" 1" 08Z-48P

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
