A45-6x12 Couplamatic A Series Coupling - DIN Heavy 24° Seat - Female Swivel 90° Bend - 3/8" Hose ID - M20x1.5 Thread

A45-6x12 by Couplamatic | A Series Coupling | 3/8" Hose ID x M20x1.5 Thread DIN Heavy 24° Seat Female Swivel | 90° Elbow

Save $12.65 Save $12.65
$31.63
$31.63 - $31.63
$31.63
$18.98
$18.98 - $18.98
$18.98

Couplamatic Systems Inc.
A Series - DIN Heavy 24° Seat - Female Swivel 90° Bend
Specifications for Variant SKU: A45-6x12 Couplamatic
Series: A Series
Shape (Orientation): 90 Degree
Ends Configuration: S12 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   2SK Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   JH Series  |   JH2 Series
Description:
  • A Series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification. Trivalent Zinc Plating.
  • O-Ring Included.

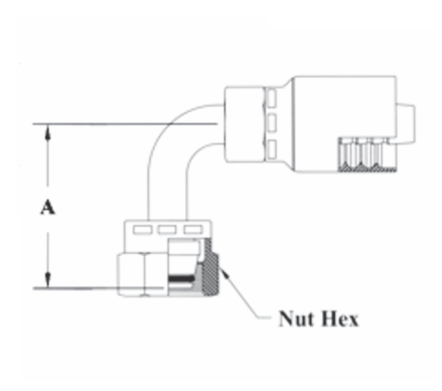

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex Cross Reference Part Numbers
Aeroquip TTC Weatherhead Z
A45-4x10 1/4" 10mm M18x1.5 1.50" 7/8" 1A6DSB4 04Z-60E
A45-6x12 3/8" 12mm M20x1.5 1.95" 1" 1A8DSB6 06Z-62E
A45-8x16 1/2" 16mm M24x1.5 2.05" 1-1/8" 1A12DSB8 08Z-66E

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
