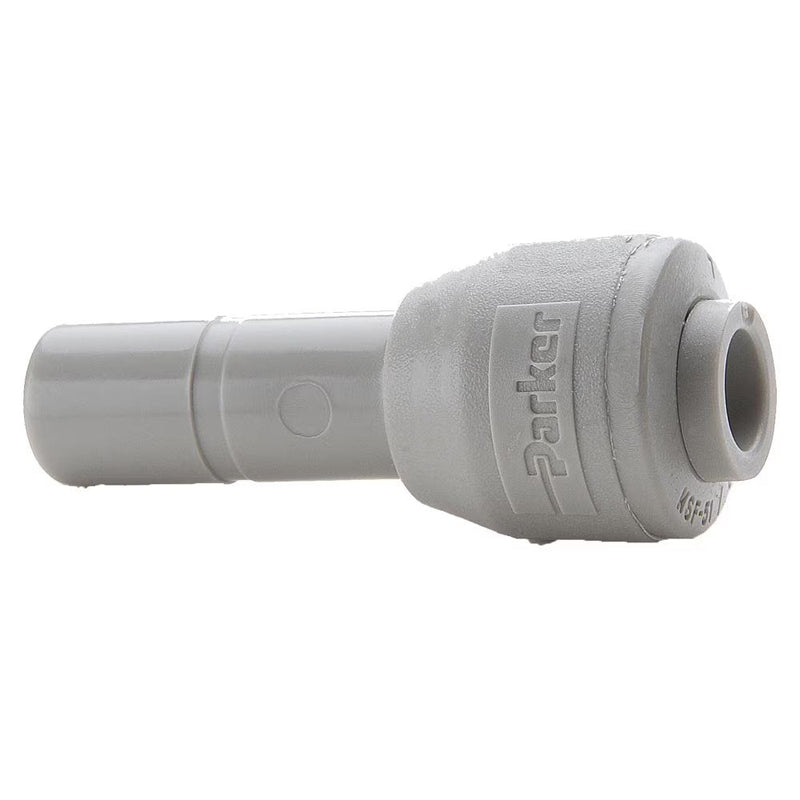

A4RD5-MG by Parker | TrueSeal™ Plug-In Fittings | 1/4" Push-to-Connect x 5/16" Tube Stem | Straight | Gray Acetal

A4RD5-MG by Parker | TrueSeal™ Plug-In Fittings | 1/4" Push-to-Connect x 5/16" Tube Stem | Straight | Gray Acetal

Save $0.61 Save $0.61
$7.58
$7.58 - $7.58
$7.58
$6.97
$6.97 - $6.97
$6.97

by Parker Hannifin
TrueSeal™ Fittings:RD - Tube Reducer
Specifications for Variant SKU: A4RD5-MG Parker
Brand: TrueSeal™
Series: RD Series
Shape (Orientation): Straight
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration
Product Features:
  • Acetal and Black Polypropylene (EPDM seals and metal gripping collet standard
  • White Polypropylene (EPDM seals and plastic gripping collet standard
  • Black Kynar (Fluorocarbon (FKM) seals and black kynar metal gripping collet standard
  • Gripping ring with stainless steel bite edge or with an engineered thermoplastic bite edge
  • FDA compliant, NSF/ANSI 51
  • Gray acetal and Black Polypropylene NSF/ANSI/CAN 61
Markets:
  • Food
  • Potable Water
  • Chemical
  • Filtration
Applications:
  • Air
  • Water
  • Soft Drinks
  • Beer
  • Wine
  • Dyes
  • Vacuum
Pressure Range: Acetal and Kynar:
  • 1/4", 5/16", 3/8" Vacuum to 300 PSI (20.7 bar) 1/2" Vacuum to 250 PSI (17.2 bar)
    • Polypropylene:
  • 1/4", 3/8", 1/2" Vacuum to 150 PSI (10.3 bar)
Temperature Range:
Acetal:
  • -20° to +180° F (-28.9° to +82.2° C)
    		•
    Polypropylene:
  • 0° to +225° F (-17.8° to +107.2° C)
    		•  Kynar:
  • 0° to +275° F (-17.8° to +135° C)
    		•
    Compatible Tubing:
    • Polyethylene
    • Polypropylene**
    • Nylon**
    • Vinyl+
    • Fluoropolymer**
    • Polyurethane+
    • *Kynar®

    * Registered trademark of The Arkema Group.
    ** Metal gripper required (-MG & -HBLK suffix).
    + Tube Support required.

    Gray Acetal EPDM Seal Black PPL EPDM Seal White PPL EPDM Seal Black Kynar FKM Seal Nom. Tube O.D. Tube Stem O.D. L Flow Diameter (D)
    A4RD5-MG - PP4RD5 - 1/4" 5/16" 1.62" .18"
    A4RD6-MG PPB4RD6-MG PP4RD6 FB4RD6-HBLK 1/4" 3/8" 1.62" .18"
    A5RD6-MG - - - 5/16" 3/8" 1.78" .25"
    A5RD8-MG - - - 5/16" 1/2" 1.90" .25"
    A6RD8-MG - - - 3/8" 1/2" 1.90" .25"
