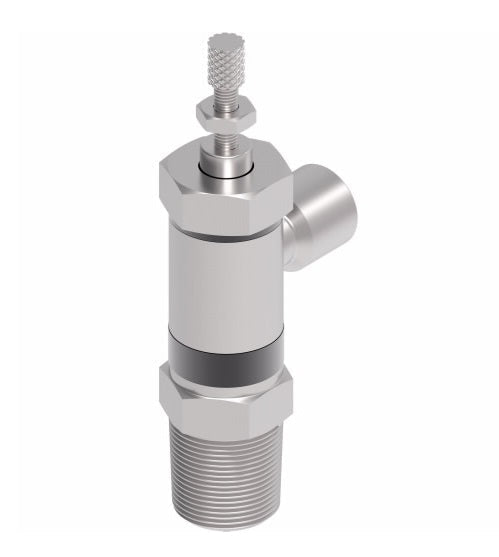

A557MCUX2X2 by Danfoss | Push to Connect Flow Control | Manual Adjust | Right Angle | 1/8" Female Banjo x 1/8" Male NPTF | Nickel Plated Brass

$57.84 - $57.84

$57.84

$57.84 - $57.84

$57.84

Aeroquip® by Danfoss
Push to Connect Flow Control

Specifications for Variant SKU: A557MCUX2X2 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	1/8in Female Banjo, 1/8in Male NPTF
Material(s):	Nickel Plated Brass

Features:
Valve: Flow Regulator Regulation: Adjustable Screw
Material:
Brass, Nickel Plated O-Ring: Buna-N
Operating Pressure:
Up to 150 PSI.


Nickel Plated Brass Part Number	Female Banjo Thread	Male NPTF B	S	H	L	Z	SW (mm)	SW1 (mm)	Adjustment	Assembly	Functions
A557MCUX2X2	1/8"	1/8"	0.51"	0.37"	2.38"	2.56"	14mm	7mm	Manual	On Cylinders	Unidirectional
A557MCUX6X6	3/8"	3/8"	0.48"	0.51"	2.95"	3.25"	19mm	10mm	Manual	On Cylinders	Unidirectional

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
