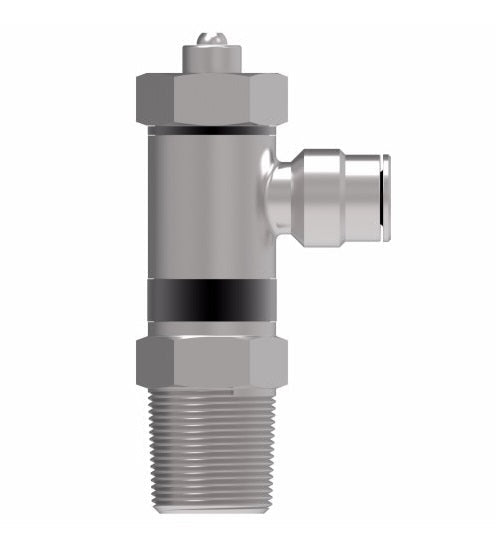

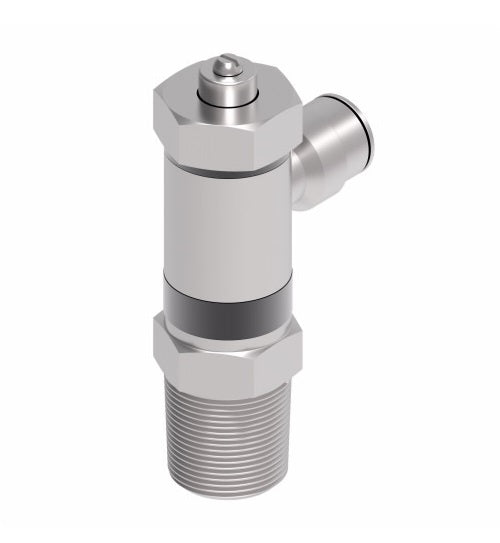

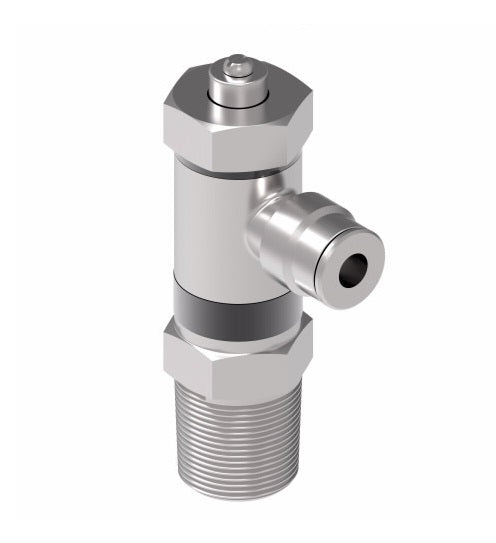

A55SCUX6X4 by Danfoss | Push to Connect Flow Control | Screwdriver Adjust | Right Angle | 3/8" Tube OD x 1/4" Male NPTF | Nickel Plated Brass

A55SCUX6X4 by Danfoss | Push to Connect Flow Control | Screwdriver Adjust | Right Angle | 3/8" Tube OD x 1/4" Male NPTF | Nickel Plated Brass

$55.75 - $55.75

$55.75

$55.75 - $55.75

$55.75

Aeroquip® by Danfoss
Push to Connect Flow Control

Specifications for Variant SKU: A55SCUX6X4 Danfoss
Shape (Orientation):	Straight
Ends Configuration:	3/8in Push-to-Connect, 1/4in Male NPTF
Material(s):	Nickel Plated Brass

Features:
Valve: Flow Regulator Regulation: Adjustable Screw
Material:
Brass, Nickel Plated O-Ring: Buna-N
Operating Pressure:
Up to 150 PSI.


Nickel Plated Brass Part Number	Tube O.D.	Male NPTF B	S	H	L	SW (mm)	Adjustment	Assembly	Functions
A55SCUX2.5X2	5/32"	1/8"	0.51"	0.37"	2.000"	14	Screwdriver	On Cylinders	Unidirectional
A55SCUX4X2	1/4"	1/8"	0.51"	0.37"	2.000"	14	Screwdriver	On Cylinders	Unidirectional
A55SCUX4X4	1/4"	1/4"	0.45"	0.51"	2.250"	17	Screwdriver	On Cylinders	Unidirectional
A55SCUX6X4	3/8"	1/4"	0.45"	0.51"	2.250"	17	Screwdriver	On Cylinders	Unidirectional
A55SCUX6X6	3/8"	3/8"	0.48"	0.51"	2.440"	19	Screwdriver	On Cylinders	Unidirectional
