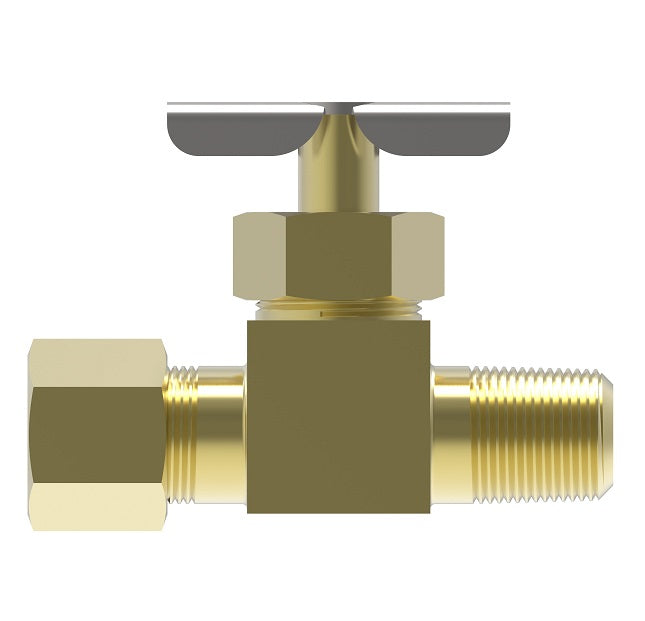

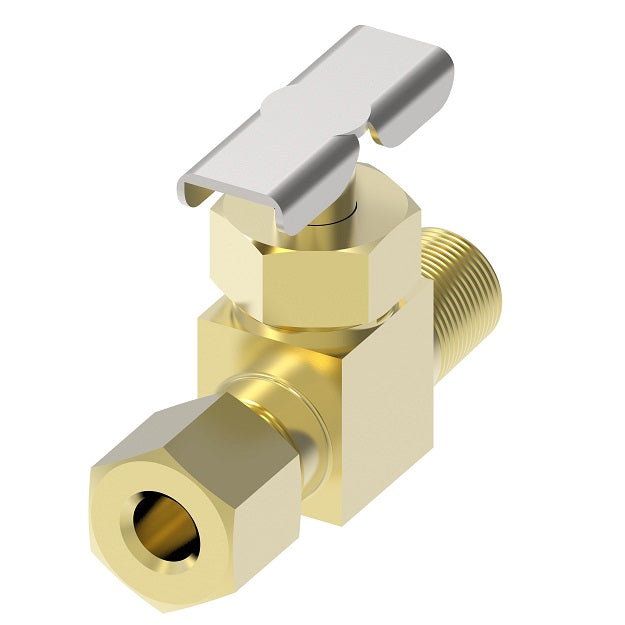

A6760S by Danfoss | Needle Valve | Compression Straightway | Selfalign | 3/8" Tube OD x 1/4" Male NPTF | Brass
A6760S by Danfoss | Needle Valve | Compression Straightway | Selfalign | 3/8" Tube OD x 1/4" Male NPTF | Brass
A6760S by Danfoss | Needle Valve | Compression Straightway | Selfalign | 3/8" Tube OD x 1/4" Male NPTF | Brass
A6760S by Danfoss | Needle Valve | Compression Straightway | Selfalign | 3/8" Tube OD x 1/4" Male NPTF | Brass

A6760S by Danfoss | Needle Valve | Compression Straightway | Selfalign | 3/8" Tube OD x 1/4" Male NPTF | Brass

$48.50 - $48.50
$48.50
$48.50 - $48.50
$48.50

Aeroquip® by Danfoss
Needle Valve - Compression Straightway
Specifications for Variant SKU: A6760S Danfoss
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies, steel handles except where noted.
  • Polyline valves have brass bodies and brass handles.
Pressure:
  • 150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
  • Designed for automotive and industrial use.
  • Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
  • Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.
Brass
Part Number 		Brass
Selfalign
Part Number 		Tube OD Male Pipe
Thread		 L M M1
A6755 - 5/16" 1/4" 1.28" 0.91" 1.09"
A6760 A6760S 3/8" 1/4" 1.82" 1.31" 1.46"

"S" suffix designates Selfalign with nuts and sleeves.

Danfoss (Eaton - Aeroquip)

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
