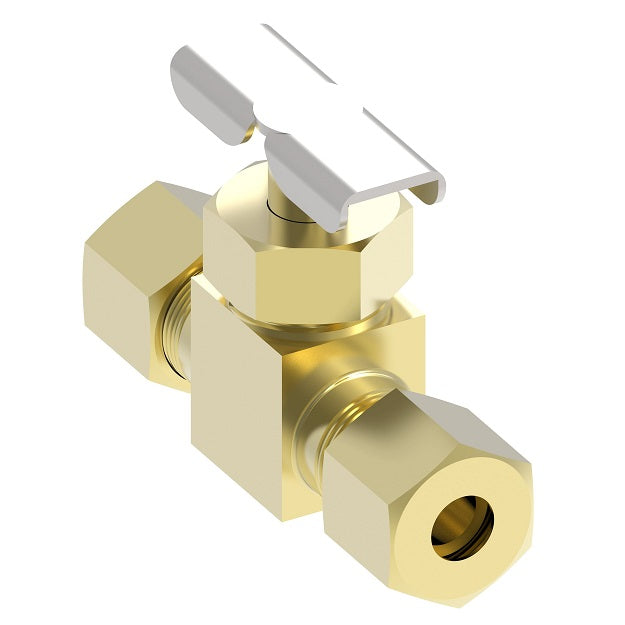

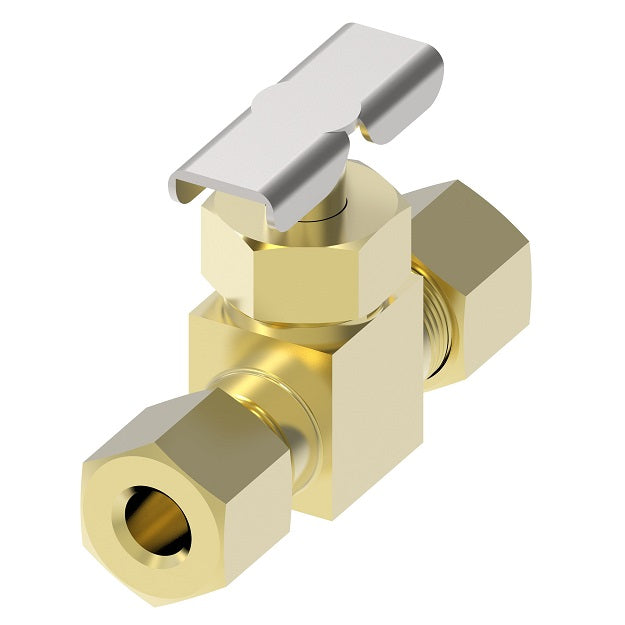

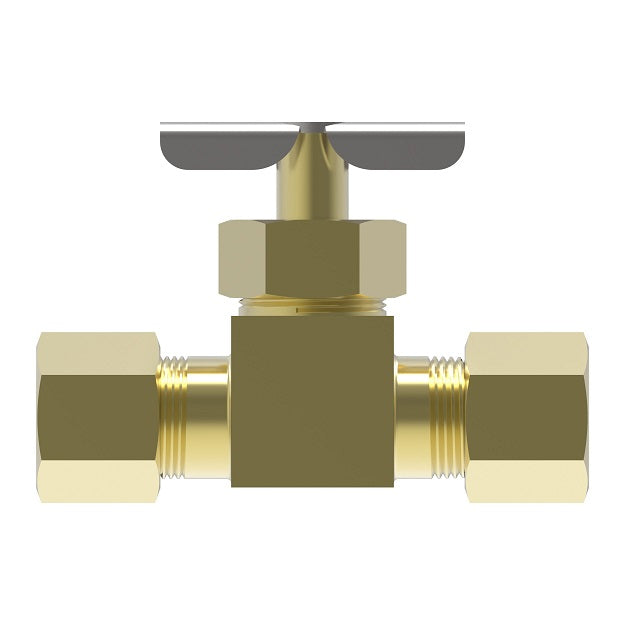

A6775 by Danfoss | Needle Valve | Compression x Compression | 3/8" Tube OD | Brass
A6775 by Danfoss | Needle Valve | Compression x Compression | 3/8" Tube OD | Brass
A6775 by Danfoss | Needle Valve | Compression x Compression | 3/8" Tube OD | Brass
A6775 by Danfoss | Needle Valve | Compression x Compression | 3/8" Tube OD | Brass

A6775 by Danfoss | Needle Valve | Compression x Compression | 3/8" Tube OD | Brass

$37.04 - $37.04
$37.04
$37.04 - $37.04
$37.04

Aeroquip® by Danfoss
Needle Valve - Compression
Specifications for Variant SKU: A6775 Danfoss
Material(s): Brass
Applications:
  • Instrumentation, hydraulic and pneumatic systems.
Advantages:
  • Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
  • Copper, aluminum, steel and plastic tubing where applicable.
Material:
  • Brass bodies, steel handles except where noted.
  • Polyline valves have brass bodies and brass handles.
Pressure:
  • 150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) with metal tubing.
  • For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
  • Designed for automotive and industrial use.
  • Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
  • Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.
Brass
Part Number 		Brass
Selfalign
Part Number 		Tube OD L M M1
A6763 - 3/16" 1.06" 0.88" 1.03"
A6765 A6765S 1/4" 1.13" 0.88" 1.03"
A6775 A6775S 3/8" 1.50" 1.13" 1.31"

"S" suffix designates Selfalign with nuts and sleeves.
