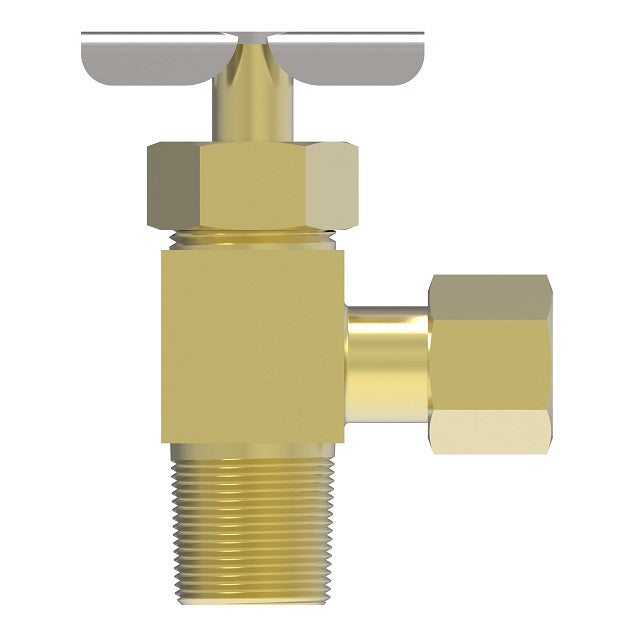

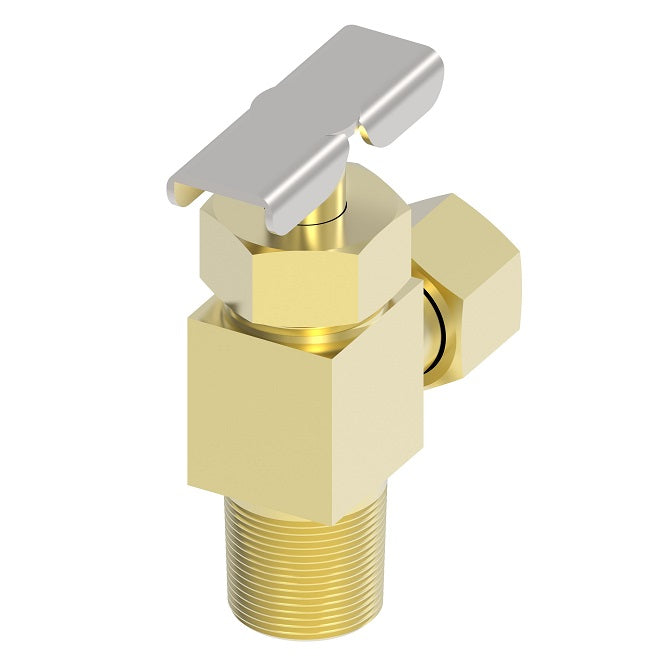

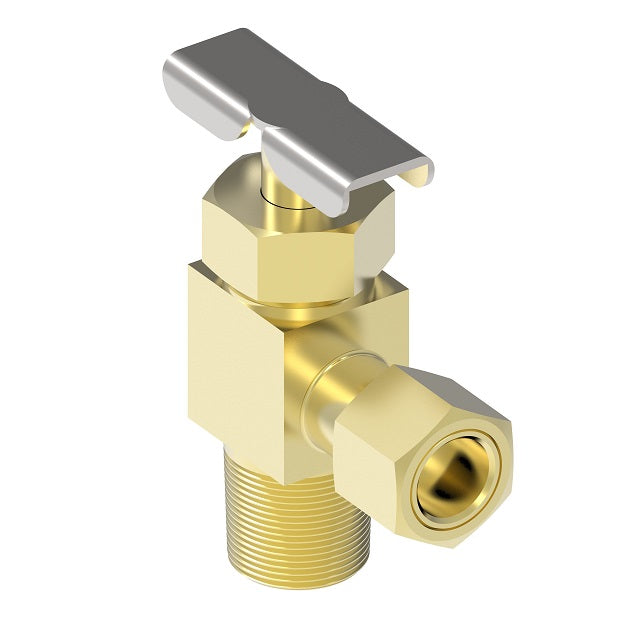

A6855S by Danfoss | Needle Valve | Compression Angle | 90° Elbow | Selfalign | 5/16" Tube OD x 1/4" Male NPTF | Brass

$37.50 - $37.50

$37.50

$37.50 - $37.50

$37.50

Aeroquip® by Danfoss
Needle Valve - Compression Angle

Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: A6855S Danfoss
Shape (Orientation):	90 Degree
Material(s):	Brass

Applications:
Instrumentation, hydraulic and pneumatic systems.
Advantages:
Metal-to-metal seat, with fine thread screw down, enables valves to seat positively, adjust easily and hold to any amount of flow up to capacity of the valve.
Used With:
Copper, aluminum, steel and plastic tubing where applicable.
Material:
Brass bodies, steel handles except where noted. Polyline valves have brass bodies and brass handles.
Pressure:
150 psi maximum. (Does not include plastic tubing.)
Temperature Range:
-65°F to +250°F (-53°C to +121°C) with metal tubing. For valves using compatible tubing, refer to the tubing temperature range.
Conformance:
Designed for automotive and industrial use. Not intended for natural gas, LPG, nuclear or aircraft applications.
Assembly Instructions:
Install with the pressure against the seat. Inspection of a straight valve discloses one opening to be higher than the other. Pressure should always be directed against the seat in angle valves, not the stem threads.


Brass Part Number	Brass Selfalign Part Number	Tube OD	Male Pipe Thread	L	M	M1	N
A6845	-	3/16"	1/8"	1.50"	0.82"	1.07"	0.50"
A555	A555S	1/4"	1/8"	1.53"	0.83"	1.05"	0.61" (A555S: 0.53")
A6855	A6855S	5/16"	1/4"	1.73"	0.92"	1.28"	0.69"

"S" suffix designates Selfalign with nuts and sleeves.
