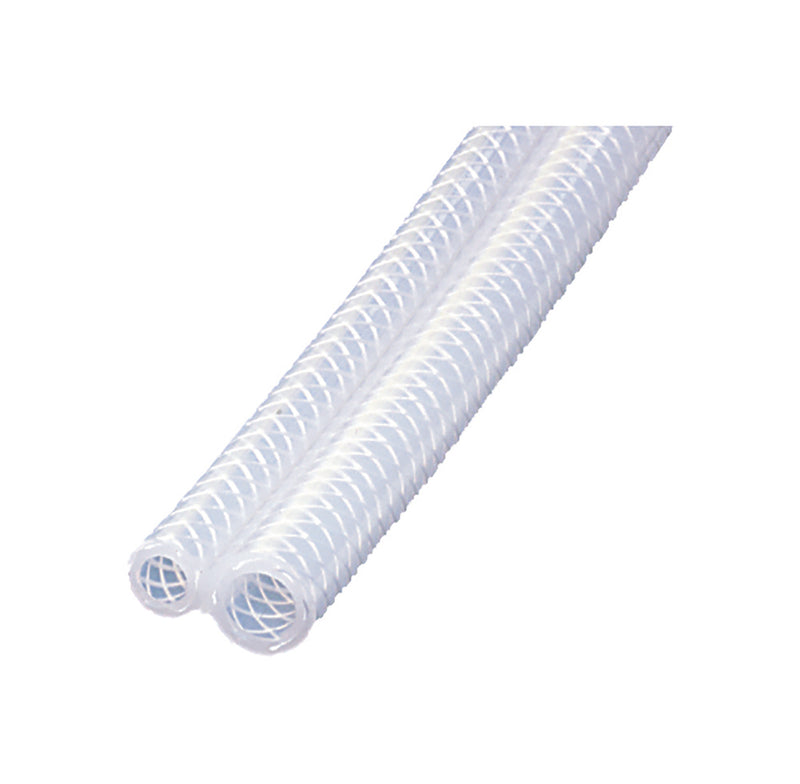

A9350-04060-04S Kuri-Tec by Kuriyama | A9350 Series | Dual Line Herbicide / Fertilizer Spray Hose | Translucent Yarn-Reinforced Polyethylene | Line 1: 1/4" ID (.457" OD) | Line 2: 3/8" ID (.593" OD) | 400ft Length

A9350-04060-04S Kuri-Tec by Kuriyama | A9350 Series | Dual Line Herbicide / Fertilizer Spray Hose | Translucent Yarn-Reinforced Polyethylene | Line 1: 1/4" ID (.457" OD) | Line 2: 3/8" ID (.593" OD) | 400ft Length

Save $148.13 Save $148.13
$781.73
$781.73 - $781.73
$781.73
$633.60
$633.60 - $633.60
$633.60

Kuri Tec® by Kuriyama
A9350 Series | Dual Line Herbicide / Fertilizer Spray Hose

A special light weight dual line reinforced hose which offers chemical resistance along with ease of handling for spraying of herbicides and fertilizers.

Package Quantity: 400 Foot

Specifications for Variant SKU: A9350-04060-04S Kuriyama | 400 |
Brand: Kuri Tec
Series: A9350 Series
Hose Color(s): White/Off-White
Internal Diameter: 0.25in x 0.38in
Outer Diameter: 0.457in x 0.593in
Tubing Construction: LLDPE
Applicable Specs & Approvals: RoHS Compliant
Special Properties: Twin Line

SPECIFICATIONS

Applications: Spot herbicide treatment, while fertilizing.
Automatic dilution of liquid concentrate at the spray head.
Tube: Special translucent LLDPE. Reinforcement: High tensile strength yarn.
Cover: Special "low friction" translucent copolymer. Service Temperature Range: -30°F (-35°C) to +150°F (+65°C)
Specifications: Phthalate Free
RoHS
Other Features:
  • Extremely light weight.
  • Exceptionally low resistance to dragging.
  • Both core and cover offer excellent chemical-resistance and resistance to environmental stress cracking.
  • Silicone-free.
  • One-piece lengths.
  • RoHS compliant.
  • Phthalate Free.
  • Note: Working Pressure decreases as temperature increases. Pressure ratings can only be obtained with proper coupling procedures.
Part Number Line 1 Line 2 Max. Working
Pressure		 Length
Nominal ID Nominal OD Nominal ID Nominal OD @70°F
(20°C)		 @122°F
(66°C)
in mm in mm in mm in mm
A9350-04060-03S 1/4" 6.5mm 0.457" 11.6mm 3/8" 9.5mm 0.593" 15.1mm 250 PSI 100 PSI 300ft
A9350-04060-04S 1/4" 6.5mm 0.457" 11.6mm 3/8" 9.5mm 0.593" 15.1mm 250 PSI 100 PSI 400ft
A9350-04080-03S 1/4" 6.5mm 0.457" 11.6mm 1/2" 12.7mm 0.740" 18.8mm 250 PSI 100 PSI 300ft
A9350-04080-04S 1/4" 6.5mm 0.457" 11.6mm 1/2" 12.7mm 0.740" 18.8mm 250 PSI 100 PSI 400ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
