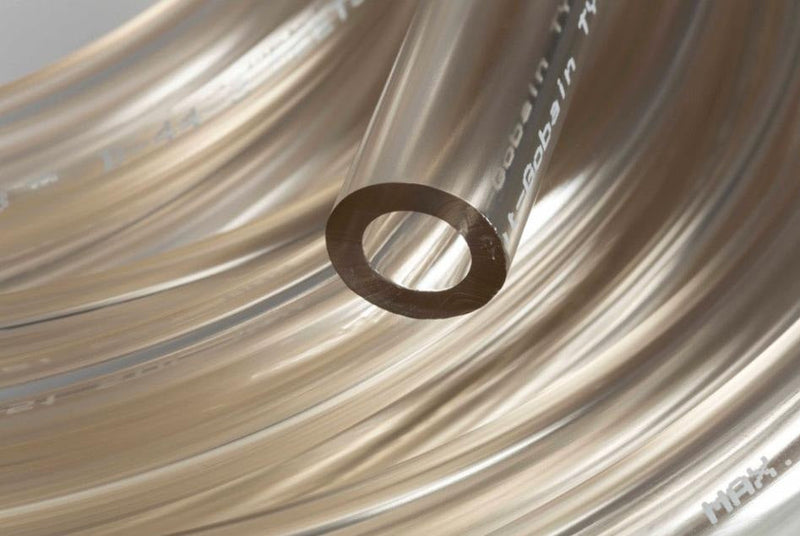

AAA00063 Tygon® by Saint Gobain | B-44-4X | Food, Milk and Dairy Tubing | 1" ID x 1-5/16" OD x 5/32" Wall | 50' Package Length

AAA00063 Tygon® by Saint Gobain | B-44-4X | Food, Milk and Dairy Tubing | 1" ID x 1-5/16" OD x 5/32" Wall | 50' Package Length

Save $174.66 Save $174.66
$611.30
$611.30 - $611.30
$611.30
$436.64
$436.64 - $436.64
$436.64

Saint Gobain
Tygon® B-44-4X | Food, Milk and Dairy Tubing

Tygon® B-44-4X is a flexible, crystal-clear food-grade tubing that resists harsh cleaning chemicals, minimizes bacterial growth, and is ideal for sanitary food and beverage processing and dispensing applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AAA00063 Saint Gobain
Brand: Tygon S3
Series: B-44-4X
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 1in
Outer Diameter: 1.6125in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, FDA 21 CFR Part 175.300, NSF 51
Phthalate-Free Flexible Tubing For Food And Beverage Dispensing

Tygon® B-44-4X Tubing

Producers of food, milk and dairy products insist upon Tygon® B-44-4X tubing for dependable performance in countless filling, draining, transfer and processing applications. Its smooth, non-porous bore inhibits particle entrapment, promoting a sanitary fluid path by minimizing potential for bacterial growth. It has outstanding resistance to harsh alkaline cleaners and is equally unaffected by commonly used sanitizers.

1

What is this product used for?
  • Aseptic filling
  • Condiment dispensing
  • Dairy processing
  • Vitamin and flavor concentrate systems
  • Soft-serve dispensing
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp °F (°C)

165°F (74°C)

Cold Temp. Flexibility @ 5°C increments, °F (°C)

-49°F (-45°C)

Specifications

- NSF-51 & NSF-61
- Japan Food Sanitation Law #370/1959
- Japan MHLW Notification No. 370, Section 3-D
- EU Food Contact Compliant (EU 10/2011)
- 3-A & FDA
- Does not contain chemicals listed in California's Proposition 65

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Smooth, non-porous bore will not trap particulates or promote bacterial growth.
  • Resistant to harsh alkaline cleaners and sanitizers.
  • Excellent alternative to rigid piping systems.
  • Contains no BPA or phthalates.
4

Which sizes or configurations are available?
Part
Number		 Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Bend
Radius
(in.)		 Max. Working
Pressure
at 73 deg. F
(PSI)		 Vacuum
Rating
(in. Hg)		 Length
AAA00001 1/32" 3/32" 1/32" 1/8" 100 PSI 29.9 in. Hg 50ft
AAA00002 1/16" 1/8" 1/32" 1/4" 60 PSI 29.9 in. Hg 50ft
AAA00003 1/16" 3/16" 1/16" 1/8" 100 PSI 29.9 in. Hg 50ft
AAA00004 3/32" 5/32" 1/32" 1/2" 43 PSI 29.9 in. Hg 50ft
AAA00006 1/8" 3/16" 1/32" 1/2" 34 PSI 25.0 in. Hg 50ft
AAA00007 1/8" 1/4" 1/16" 3/8" 60 PSI 29.9 in. Hg 50ft
AAA00009 5/32" 7/32" 1/32" 3/4" 28 PSI 16.0 in. Hg 50ft
AAA00010 5/32" 9/32" 1/16" 1/2" 50 PSI 29.9 in. Hg 50ft
AAA00011 3/16" 1/4" 1/32" 1" 25 PSI 11.0 in. Hg 50ft
AAA00012 3/16" 5/16" 1/16" 5/8" 43 PSI 29.9 in. Hg 50ft
AAA00017 1/4" 3/8" 1/16" 1" 34 PSI 25.0 in. Hg 50ft
AAA00018 1/4" 7/16" 3/32" 3/4" 47 PSI 29.9 in. Hg 50ft
AAA00019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 50ft
AAA00022 5/16" 7/16" 1/16" 1-3/8" 28 PSI 16.0 in. Hg 50ft
AAA00023 5/16" 1/2" 3/32" 1" 40 PSI 29.9 in. Hg 50ft
AAA00024 5/16" 9/16" 1/8" 7/8" 50 PSI 29.9 in. Hg 50ft
AAA00027 3/8" 1/2" 1/16" 1-3/4" 25 PSI 11.0 in. Hg 50ft
AAA00028 3/8" 9/16" 3/32" 1-3/8" 34 PSI 25.0 in. Hg 50ft
AAA00029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 50ft
AAA00036 1/2" 5/8" 1/16" 2-7/8" 19 PSI 6.0 in. Hg 50ft
AAA00037 1/2" 11/16" 3/32" 2-1/8" 27 PSI 14.0 in. Hg 50ft
AAA00038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 25.0 in. Hg 50ft
AAA00039 1/2" 13/16" 5/32" 1-1/2" 40 PSI 29.9 in. Hg 50ft
AAA00045 5/8" 13/16" 3/32" 3" 23 PSI 9.0 in. Hg 50ft
AAA00046 5/8" 7/8" 1/8" 2-3/8" 29 PSI 16.0 in. Hg 50ft
AAA00047 5/8" 5/16" 5/32" 2" 35 PSI 26.0 in. Hg 50ft
AAA00053 3/4" 1" 1/8" 3-1/4" 25 PSI 11.0 in. Hg 50ft
AAA00054 3/4" 1-1/16" 5/32" 2-3/4" 30 PSI 18.0 in. Hg 50ft
AAA00055 3/4" 1-1/8" 3/16" 2-3/8" 34 PSI 26.0 in. Hg 50ft
AAA00057 3/4" 1-1/4" 1/4" 2" 43 PSI 29.9 in. Hg 50ft
AAA00059 7/8" 1-1/8" 1/8" 4-1/8" 22 PSI 8.0 in. Hg 50ft
AAA00062 1" 1-1/4" 1/8" 5-1/8" 20 PSI 6.0 in. Hg 50ft
AAA00063 1" 1-5/16" 5/32" 4-3/8" 24 PSI 10 in. Hg 50ft
AAA00064 1" 1-3/8" 3/16" 3-3/4" 27 PSI 14.0 in. Hg 50ft
AAA00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
AAA00067 1-1/8" 1-3/8" 1/8" 6-1/4" 18 PSI 5.0 in. Hg 50ft
AAA00070 1-1/4" 1-5/8" 3/16" 5-1/2" 23 PSI 9.0 in. Hg 50ft
AAA00074 1-1/2" 2" 1/4" 5-7/8" 25 PSI 11.0 in. Hg 50ft
AAA00078 2" 2-1/2" 1/4" 9-3/8" 19 PSI 6.0 in. Hg 50ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® B-44-4X Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
