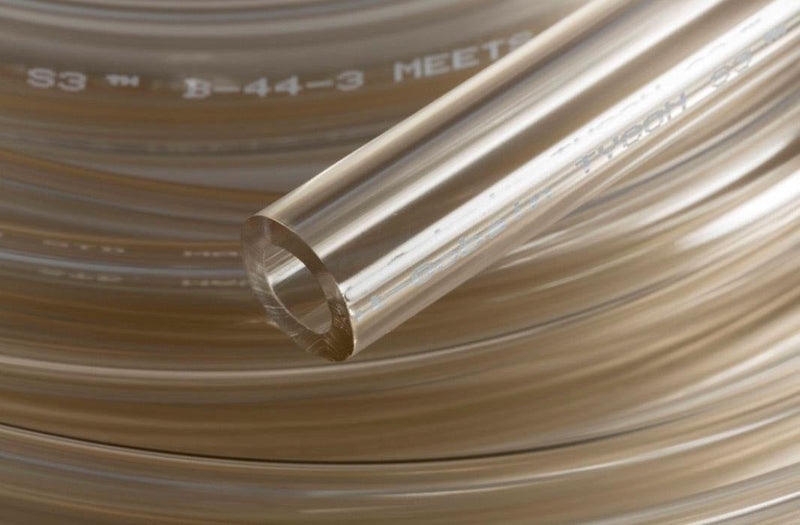

AAB00027 Tygon® by Saint Gobain | B-44-3 | Flexible Tubing for Beverage Transfer | 3/8" ID x 1/2" OD x 1/16" Wall | 50' Package Length

AAB00027 Tygon® by Saint Gobain | B-44-3 | Flexible Tubing for Beverage Transfer | 3/8" ID x 1/2" OD x 1/16" Wall | 50' Package Length

Save $36.66 Save $36.66
$128.31
$128.31 - $128.31
$128.31
$91.65
$91.65 - $91.65
$91.65

Saint Gobain
Tygon® B-44-3 | Flexible Tubing for Beverage Transfer

Tygon® B-44-3 tubing is specially formulated for transferring a wide variety of beverages including soft drinks, fruit juices, flavored teas and bottled water.

Will not affect the taste or odor of products transferred through it; the transferred product will also not affect the mechanical properties of the tubing (color, transparency, cracking, hardness, tackiness, weight change, and flexibility).

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AAB00027 Saint Gobain
Brand: Tygon S3
Series: B-44-3
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 0.375in
Outer Diameter: 0.50in
Tubing Construction: PVC
Applicable Specs & Approvals: Applicable 3-A Sanitary Standards, Applicable FDA Requirements, EU Food Contact Regulation (EU) No 10/2011, Japan Food Sanitation Law #370/1959, REACH Compliant, Regulation (EC) No 1935/2004
Phthalate-Free Flexible Tubing For Beverage Transfer

Tygon® B-44-3 Tubing

Tygon® B-44-3 tubing for beverage transfer from Saint-Gobain is phthalate-free and specifically formulated to ensure it does not affect the taste nor odor of liquids moving through it, including soft drinks and juices. It is non-wetting, which allows it to completely drain and flush clean with ease, and its glass-like clarity makes it easy to monitor and adjust the beverage flow during processing.

1

What is this product used for?
  • Food and beverage transfer.
  • Food and beverage dispensing.
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp °C (°F)

165°C (74°F)

Cold Temp. Flexibility @ 5°C increments, °F (°C)

-67°F (-55°C)

Specifications

- Complies with applicable FDA Food Additive Regulations
- NSF®-51, NSF®-61, 3-A
- Japan Food Sanitation Law # 370/1959
- REACH, and 1935/2004/EC for many foods and beverages
- Does not contain chemicals listed in California’s Proposition 65
- EU 10/2011

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Tubing will not affect the taste or odor of transferred products.
  • Transferred product will not affect the tubing’s mechanical properties (color, transparency, cracking, hardness, tackiness, weight change, and flexibility).
  • Clear as glass for easy visual monitoring of flow.
  • Lightweight and flexible for easy, quick installation.
  • Broad chemical resistance.
  • Non-wetting properties allow easy cleaning and complete drainage.
  • Contains no BPA or phthalates.
4

Which sizes or configurations are available?
Part
Number		 Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Bend
Radius
(in.)		 Max. Working
Pressure
at 73 deg. F
(PSI)		 Vacuum
Rating
(in. Hg)		 Length
AAB00002 1/16" 1/8" 1/32" 1/4" 60 PSI 29.9 in. Hg 50ft
AAB00003 1/16" 3/16" 1/16" 1/8" 10 PSI 29.9 in. Hg 50ft
AAB00004 3/32" 5/32" 1/32" 3/8" 43 PSI 29.9 in. Hg 50ft
AAB00005 3/32" 7/32" 1/16" 1/4" 74 PSI 29.9 in. Hg 50ft
AAB00006 1/8" 3/16" 1/32" 1/2" 34 PSI 25.0 in. Hg 50ft
AAB00007 1/8" 1/4" 1/16" 3/8" 60 PSI 29.9 in. Hg 50ft
AAB00009 5/32" 7/32" 1/32" 3/4" 28 PSI 16.0 in. Hg 50ft
AAB00010 5/32" 9/32" 1/16" 1/2" 50 PSI 29.9 in. Hg 50ft
AAB00011 3/16" 1/4" 1/32" 1" 25 PSI 11.0 in. Hg 50ft
AAB00012 3/16" 5/16" 1/16" 5/8" 43 PSI 29.9 in. Hg 50ft
AAB00013 3/16" 3/8" 3/32" 1/2" 60 PSI 29.9 in. Hg 50ft
AAB00014 3/16" 7/16" 1/8" 3/8" 74 PSI 29.9 in. Hg 50ft
AAB00016 1/4" 5/16" 1/32" 1-5/8" 19 PSI 6.0 in. Hg 50ft
AAB00017 1/4" 3/8" 1/16" 1" 34 PSI 25.0 in. Hg 50ft
AAB00018 1/4" 7/16" 3/32" 3/4" 47 PSI 29.9 in. Hg 50ft
AAB00019 1/4" 1/2" 1/8" 5/8" 60 PSI 29.9 in. Hg 50ft
AAB00022 5/16" 7/16" 1/16" 1-3/8" 28 PSI 16.0 in. Hg 50ft
AAB00023 5/16" 1/2" 3/32" 1" 40 PSI 29.9 in. Hg 50ft
AAB00024 5/16" 9/16" 1/8" 7/8" 50 PSI 29.9 in. Hg 50ft
AAB00027 3/8" 1/2" 1/16" 1-3/4" 25 PSI 11.0 in. Hg 50ft
AAB00028 3/8" 9/16" 3/32" 1-3/8" 34 PSI 25.0 in. Hg 50ft
AAB00029 3/8" 5/8" 1/8" 1-1/8" 44 PSI 29.9 in. Hg 50ft
AAB00034 7/16" 11/16" 1/8" 1-3/8" 36 PSI 29.9 in. Hg 50ft
AAB00036 1/2" 5/8" 1/16" 2-7/8" 19 PSI 6.0 in. Hg 50ft
AAB00037 1/2" 11/16" 3/32" 2-1/8" 27 PSI 14.0 in. Hg 50ft
AAB00038 1/2" 3/4" 1/8" 1-3/4" 34 PSI 25.0 in. Hg 50ft
AAB00046 5/8" 7/8" 1/8" 2-3/8" 29 PSI 16.0 in. Hg 50ft
AAB00051 11/16" 15/16" 1/8" 2-7/8" 27 PSI 13.0 in. Hg 50ft
AAB00053 3/4" 1" 1/8" 3-1/4" 25 PSI 11.0 in. Hg 50ft
AAB00059 7/8" 1-1/8" 1/8" 4-1/8" 22 PSI 8.0 in. Hg 50ft
AAB00062 1" 1-1/4" 1/8" 5-1/8" 20 PSI 6.0 in. Hg 50ft
AAB00064 1" 1-3/8" 3/16" 3-3/4" 27 PSI 14.0 in. Hg 50ft
AAB00065 1" 1-1/2" 1/4" 3" 34 PSI 25.0 in. Hg 50ft
AAB00069 1-1/4" 1-1/2" 1/8" 7-3/8" 16 PSI 4.0 in. Hg 50ft
AAB00070 1-1/4" 1-5/8" 3/16" 5-1/2" 23 PSI 9.0 in. Hg 50ft
AAB00071 1-1/4" 1-3/4" 1/4" 4-3/8" 28 PSI 16.0 in. Hg 50ft
AAB00073 1-1/2" 1-7/8" 3/16" 7-1/4" 19 PSI 6.0 in. Hg 50ft
AAB00074 1-1/2" 2" 1/4" 5-7/8" 25 PSI 11.0 in. Hg 50ft
AAB00076 1-3/4" 2-1/4" 1/4" 7-1/2" 22 PSI 8.0 in. Hg 50ft
AAB00078 2" 2-1/2" 1/4" 9-3/8" 19 PSI 6.0 in. Hg 50ft
AAB02007 1/8" 1/4" 1/16" N/A N/A N/A 100ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® B-44-3 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
