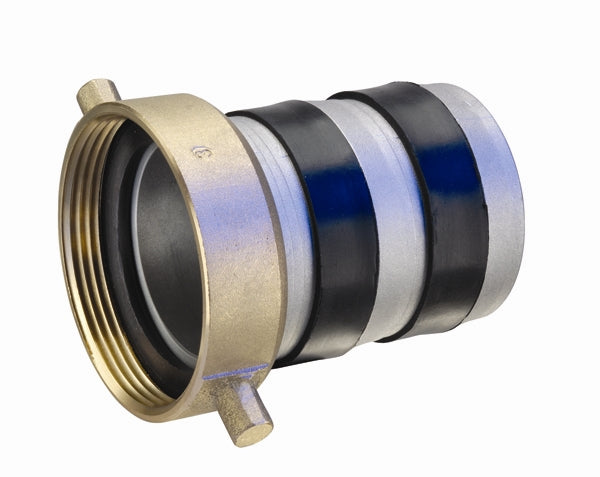

ABF-LF400 by Kuriyama | EZ-Seal™ Leak Resistant Pin Lug Fitting | ABF-LF Series | 4" Size | Shank with Female Brass Swivel Nut | Aluminum

Save $13.70

$51.57

$51.57 - $51.57

$51.57

$37.87

$37.87 - $37.87

$37.87

Kuriyama
EZ-Seal™ Leak Resistant Pin Lug Fitting | ABF-LF Series | Shank with Female Brass Swivel Nut

Has Rubber seals on the hose barb to help prevent leakage.

Versatile threaded hose connectors designed for suction and discharge applications.

Specifications for Variant SKU: ABF-LF400 Kuriyama
Brand:	EZ-Seal
Series:	ABF-LF Series
Shape (Orientation):	Straight
Ends Configuration:	4in Hose Barb, 4in Female NPSM
Material(s):	Aluminum, Brass
Applicable Specs & Approvals:	ASTM B108-92, ASTM B283 Grade 37700

Applications:
Versatile threaded hose connectors designed for suction and discharge applications.
Features:
EZ-Seal™ fittings come with rubber seals on the shanks to help prevent leakage. Male ends supplied with NPSM threads (National Pipe Straight Mechanical). Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling. Note: To insure proper sealing attach band clamps directly over rubber seals during assembly procedure.
Construction:
ASTM B108-92 356 aluminum alloy. ASTM B283 Grade 37700 brass alloy.

ABF-LF Series \| Aluminum Shank with Female Brass Swivel Nut

Part Number	Size (in)	PSI Rating at 70°F
ABF-LF150	1-1/2"	75 PSI
ABF-LF200	2"	75 PSI
ABF-LF300	3"	50 PSI
ABF-LF400	4"	50 PSI

ABM-LF Series \| Shank with Male NPSM Threads

Part Number	Size (in)	PSI Rating at 70°F
ABM-LF150	1-1/2"	75 PSI
ABM-LF200	2"	75 PSI
ABM-LF300	3"	50 PSI
ABM-LF400	4"	50 PSI
