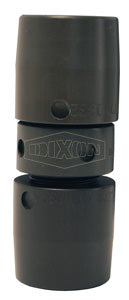

ABH10150F Dixon Aluminum Hardcoat Hole Type Booster Hose Coupling - 1" Hose Size - 1" NST(NH) Thread Type - 1-1/2" Bowl Size

Name: ABH10150F Dixon Aluminum Hardcoat Hole Type Booster Hose Coupling - 1" Hose Size - 1" NST(NH) Thread Type - 1-1/2" Bowl Size
Brand: Dixon
SKU: ABH10150F Dixon
Price: 168.6 USD
Availability: InStock

Save $7.54

$176.14

$176.14 - $176.14

$176.14

$168.60

$168.60 - $168.60

$168.60

Dixon Fire Fittings
Fire Hose Coupling - Hose Type Booster Hose Couplings

Sold as a complete set.

Quantity

Specifications for Variant SKU: ABH10150F Dixon
Shape (Orientation):	Straight
Material(s):	Aluminum

Features:
Special tooling is required to attach these couplings to hose. Hardcoat finish. Working pressure: 800 PSI at ambient temperature 70°F (21°C). 3/4 and 1" NST threads are the same size; also known as Chemical Hose Thread (CHT) or Booster Hose Thread.

Part Number	Hose Size	Thread Type	Bowl Size	Weight (Lbs.)
ABH08125	3/4"	1" NPSH	1-1/4"	0.6600
ABH10143F	1"	1" NST (NH)	1-7/16"	0.0600
ABH10150F	1"	1" NST (NH)	1-1/2"	0.7700

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
