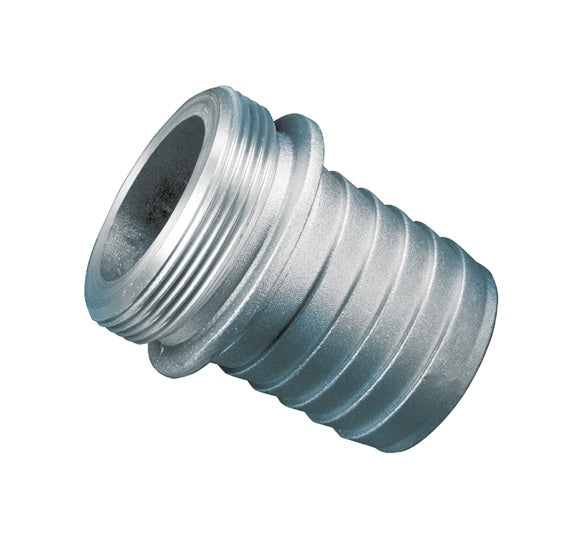

ABM250 by Kuriyama | ABM Series | Pin Lug Coupling | Male End | 2-1/2" Hose Barb x 2-1/2" Male NPSM | Aluminum

ABM250 by Kuriyama | ABM Series | Pin Lug Coupling | Male End | 2-1/2" Hose Barb x 2-1/2" Male NPSM | Aluminum

Save $7.45 Save $7.45
$20.91
$20.91 - $20.91
$20.91
$13.46
$13.46 - $13.46
$13.46

Kuriyama of America Inc.
ABM Series | Pin Lug Hose Shank Coupling | Male End | Hose Barb x Male NPSM | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.
Specifications for Variant SKU: ABM250 Kuriyama
Series: ABM Series
Shape (Orientation): Straight
Ends Configuration: 2-1/2in Hose Barb, 2-1/2in Male NPSM
Material(s): Aluminum
Applicable Specs & Approvals: ASTM B85 Grade 383

What are the Features?

  • Versatile threaded hose connectors designed for suction and discharge applications.
  • Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
  • Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.

What are the Materials?

  • ASTM B85 Grade 383 aluminum alloy. (2 1/2", 6" sizes)
  • ASTM B108-92 356 aluminum alloy. (1 1/2", 2", 3", 4" sizes)
  • ASTM B283 Grade 37700 brass alloy. (1 1/2", 2", 3", 4" sizes)
  • ASTM B584 Grade C85700 brass alloy. (4", 6" sizes)
Part Number Size
(in)		 PSI Rating
at 70°F		 Weight
Each
(lbs)
ABM150 1-1/2" 75 PSI 0.18 lbs
ABM200 2" 75 PSI 0.25 lbs
ABM250 2-1/2" 50 PSI 0.40 lbs
ABM300 3" 50 PSI 1.04 lbs
ABM400 4" 50 PSI 1.70 lbs
ABM600 6" 25 PSI 3.04 lbs
