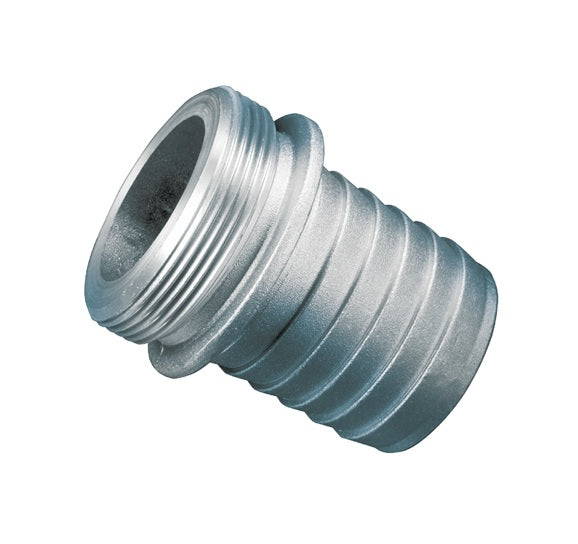

ABM600 by Kuriyama | ABM Series | Pin Lug Coupling | Male End | 6" Hose Barb x 6" Male NPSM | Aluminum

Save $16.01

$67.83

$67.83 - $67.83

$67.83

$51.82

$51.82 - $51.82

$51.82

Kuriyama of America Inc.
ABM Series | Pin Lug Hose Shank Coupling | Male End | Hose Barb x Male NPSM | Aluminum with Brass Swivel Nut

Versatile threaded hose connectors designed for suction and discharge applications.

Specifications for Variant SKU: ABM600 Kuriyama
Series:	ABM Series
Shape (Orientation):	Straight
Ends Configuration:	6in Hose Barb, 6in Male NPSM
Material(s):	Aluminum
Applicable Specs & Approvals:	ASTM B85 Grade 383, ASTM B584

What are the Features?

Versatile threaded hose connectors designed for suction and discharge applications.
Male ends supplied with NPSM threads (National Pipe Straight Mechanical).
Cylindrical studs or "pins" positioned on the outside rim of the coupling allowing the use of a spanner wrench to tighten the coupling.

What are the Materials?

ASTM B85 Grade 383 aluminum alloy. (2 1/2", 6" sizes)
ASTM B108-92 356 aluminum alloy. (1 1/2", 2", 3", 4" sizes)
ASTM B283 Grade 37700 brass alloy. (1 1/2", 2", 3", 4" sizes)
ASTM B584 Grade C85700 brass alloy. (4", 6" sizes)

Part Number	Size (in)	PSI Rating at 70°F	Weight Each (lbs)
ABM150	1-1/2"	75 PSI	0.18 lbs
ABM200	2"	75 PSI	0.25 lbs
ABM250	2-1/2"	50 PSI	0.40 lbs
ABM300	3"	50 PSI	1.04 lbs
ABM400	4"	50 PSI	1.70 lbs
ABM600	6"	25 PSI	3.04 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
