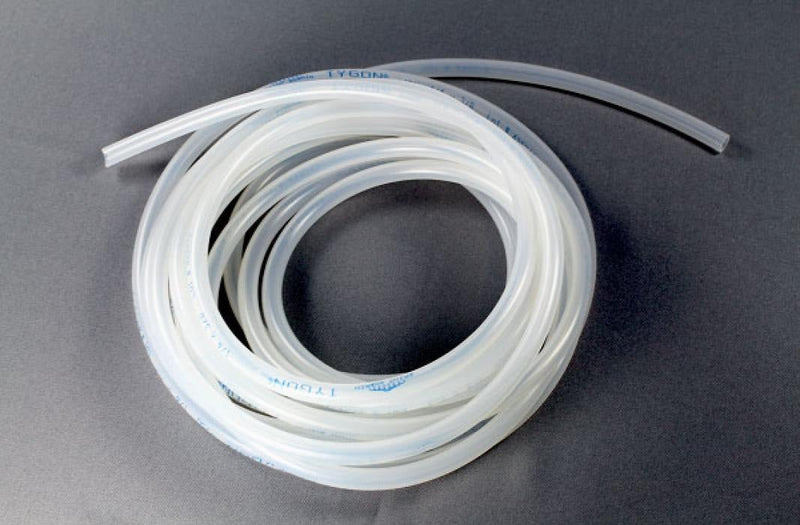

ABW37NSF Tygon® by Saint Gobain | SPT-3350 | Silicone Food & Beverage Transfer Tubing | 1/2" ID x 11/16" OD x 3/32" Wall | Old Part #: ABW00037 | 50' Package Length

Name: ABW37NSF Tygon® by Saint Gobain | SPT-3350 | Silicone Food & Beverage Transfer Tubing | 1/2" ID x 11/16" OD x 3/32" Wall | Old Part #: ABW00037 | 50' Package Length
Brand: Saint-Gobain
SKU: ABW37NSF Saint Gobain
Price: 389.57 USD
Availability: InStock

Minimum Order Quantity: 10 Packages

Save $155.83

$545.40

$545.40 - $545.40

$545.40

$389.57

$389.57 - $389.57

$389.57

Saint Gobain
Tygon® SPT-3350 | Silicone Food & Beverage Transfer Tubing

Tygon® SPT-3350 silicone tubing is produced from a platinum curing process to meet the most demanding requirements of food and beverage sanitary standards.

No by the foot sales. This is a Packaged Length product. 2-14 Week Lead Times.

Package Quantity: 50 FT

Specifications for Variant SKU: ABW37NSF Saint Gobain
Brand:	Tygon
Series:	SPT-3350
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.50in
Outer Diameter:	0.6875in
Tubing Construction:	Silicone
Applicable Specs & Approvals:	Applicable 3-A Sanitary Standards , FDA 21 CFR Part 175.300, NSF 51

Silicone & Rubber Flexible Tubing

Tygon® SPT-3350 | Silicone Food & Beverage Transfer Tubing

Tygon® SPT-3350 tubing from Saint-Gobain is ideal for food and beverage dispensing. It is up to three times smoother than other silicone tubing, which reduces extractable content and the risk of particle entrapment, as well as microscopic build-up during fluid transfer – helping to maintain the integrity of the transported food and beverage media. This tubing’s smooth inner surface improves fluid flow by reducing its surface area and, even after repeated use, helps completely clean sanitize the fluid transfer system.

1

What is this product used for?

Automatic water sampling equipment

2

What are the key specifications?

Tube

Silicone

Cover

Silicone

Reinforcement

None

Colors

Translucent

Maximum Recommended Operating Temp. °F (°C)

400°F (204°C)

Brittleness by Impact Temp. °F (°C)

-112°F (-80°C)

Specifications

FDA 21 CFR 175.300
NSF® 51 Certification

WARNING:

Not intended as an implant material!

3

What are the main product features?

Ultra-smooth inner bore reduces potential for particle entrapment.
Minimal extractable help maintain fluid integrity.
Excellent fluid flow characteristics.

4

Which sizes or configurations are available?

Part Number	Inside Diameter	Outside Diameter	Wall Thickness	Length	Min. Bend Radius	Max. Working Pressure		Vacuum Rating
	(in.)	(in.)	(in.)		(in.)	73° F (PSI)	320° F (PSI)	inHg at 73° F	inHg at 320° F
ABW01NSF	1/32"	3/32"	1/32"	50ft	1/2"	22 PSI	21 PSI	29.9 in. Hg	29.9 in. Hg
ABW02NSF	1/16"	1/8"	1/32"	50ft	1/4"	14 PSI	13 PSI	29.9 in. Hg	29.9 in. Hg
ABW03NSF	1/16"	3/16"	1/16"	50ft	1/4"	22 PSI	21 PSI	29.9 in. Hg	29.9 in. Hg
ABW04NSF	3/32"	5/32"	1/32"	50ft	1/4"	11 PSI	10 PSI	29.9 in. Hg	29.9 in. Hg
ABW05NSF	3/32"	7/32"	1/16"	50ft	1/4"	18 PSI	16 PSI	29.9 in. Hg	29.9 in. Hg
ABW06NSF	1/8"	3/16"	1/32"	50ft	3/8"	9 PSI	8 PSI	20.0 in. Hg	15.0 in. Hg
ABW07NSF	1/8"	1/4"	1/16"	50ft	1/2"	14 PSI	13 PSI	29.9 in. Hg	29.9 in. Hg
ABW09NSF	5/32"	7/32"	1/32"	50ft	3/4"	7 PSI	6 PSI	10.0 in. Hg	10.0 in. Hg
ABW11NSF	3/16"	1/4"	1/32"	50ft	1"	7 PSI	6 PSI	5.0 in. Hg	5.0 in. Hg
ABW12NSF	3/16"	5/16"	1/16"	50ft	1/2"	11 PSI	10 PSI	25.0 in. Hg	25.0 in. Hg
ABW13NSF	3/16"	3/8"	3/32"	50ft	3/8"	14 PSI	13 PSI	29.9 in. Hg	29.9 in. Hg
ABW14NSF	3/16"	7/6"	1/8"	50ft	3/8"	18 PSI	16 PSI	29.9 in. Hg	29.9 in. Hg
ABW16NSF	1/4"	5/16"	1/32"	50ft	1-1/2"	5 PSI	4 PSI	1.0 in. Hg	1.0 in. Hg
ABW17NSF	1/4"	3/8"	1/16"	50ft	3/4"	9 PSI	8 PSI	15.0 in. Hg	15.0 in. Hg
ABW18NSF	1/4"	7/16"	3/32"	50ft	5/8"	12 PSI	11 PSI	29.9 in. Hg	29.9 in. Hg
ABW19NSF	1/4"	1/2"	1/8"	50ft	5/8"	14 PSI	13 PSI	29.9 in. Hg	29.9 in. Hg
ABW22NSF	5/16"	7/16"	1/16"	50ft	1-1/4"	7 PSI	6 PSI	5.0 in. Hg	5.0 in. Hg
ABW23NSF	5/16"	1/2"	3/32"	50ft	5/8"	10 PSI	9 PSI	20.0 in. Hg	20.0 in. Hg
ABW27NSF	3/8"	1/2"	1/16"	50ft	1-1/2"	9 PSI	8 PSI	5.0 in. Hg	5.0 in. Hg
ABW28NSF	3/8"	9/16"	3/32"	50ft	1"	11 PSI	10 PSI	20.0 in. Hg	15.0 in. Hg
ABW29NSF	3/8"	5/8"	1/8"	50ft	1"	12 PSI	11 PSI	29.9 in. Hg	29.9 in. Hg
ABW32NSF	7/16"	9/16"	1/16"	50ft	1-1/2"	4 PSI	3 PSI	2.0 in. Hg	2.0 in. Hg
ABW33NSF	7/16"	5/8"	3/32"	50ft	1-3/4"	8 PSI	7 PSI	10.0 in. Hg	10.0 in. Hg
ABW36NSF	1/2"	5/8"	1/16"	50ft	3"	5 PSI	4 PSI	1.0 in. Hg	1.0 in. Hg
ABW37NSF	1/2"	11/16"	3/32"	50ft	1-3/4"	7 PSI	6 PSI	5.0 in. Hg	5.0 in. Hg
ABW38NSF	1/2"	3/4"	1/8"	50ft	1-1/2"	9 PSI	8 PSI	15.0 in. Hg	15.0 in. Hg
ABW45NSF	5/8"	13./16"	3/32"	50ft	3"	6 PSI	5 PSI	5.0 in. Hg	0.0 in. Hg
ABW46NSF	5/8"	7/8"	1/8"	50ft	2-1/2"	7 PSI	6 PSI	10.0 in. Hg	10.0 in. Hg
ABW53NSF	3/4"	1"	1/8"	50ft	2-1/2"	7 PSI	6 PSI	1.0 in. Hg	1.0 in. Hg
ABW62NSF	1"	1-1/4"	1/8"	50ft	5"	5 PSI	4 PSI	0.0 in. Hg	0.0 in. Hg
ABW69NSF	1-1/4"	1-1/2"	1/8"	50ft	6"	5 PSI	4 PSI	0.0 in. Hg	0.0 in. Hg
ABW74NSF	1-1/2"	2"	1/4"	50ft	7"	6 PSI	5 PSI	1.0 in. Hg	1.0 in. Hg

i

Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Tygon® SPT-3350 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.
