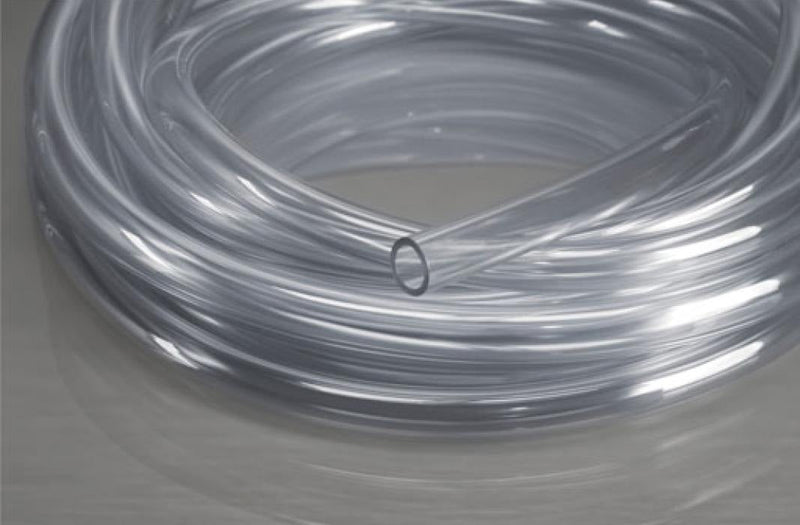

ACF1S1517 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Metric Tubing | 3mm ID x 5mm OD x 1mm Wall | 15m Package Length

ACF1S1517 Tygon S3™ by Saint Gobain | E-3603 | Non-DEHP Phthalate-Free Laboratory Metric Tubing | 3mm ID x 5mm OD x 1mm Wall | 15m Package Length

Save $11.31 Save $11.31
$39.58
$39.58 - $39.58
$39.58
$28.27
$28.27 - $28.27
$28.27

Saint Gobain
Tygon S3™ E-3603 | Non-DEHP Phthalate-Free Laboratory Metric Tubing

Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion.

For instrumentation connection, vent, drain, and other general laboratory applications.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 15 M

Specifications for Variant SKU: ACF1S1517 Saint Gobain
Brand: Tygon S3
Series: E-3603
Hose Color(s): Clear/Semi-Clear
Internal Diameter: 3mm
Outer Diameter: 5mm
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: FDA 21 CFR Part 170.189, Japan Food Sanitation Law No 370/1959, NSF 51, REACH Compliant, Regulation (EC) No 1935/2004, Regulation (EU) No 10/2011
Laboratory Tubing

Tygon S3™ E-3603 | Flexible Fuel Tubing

Tygon S3™ E-3603 Tubing is formulated to resist flex-fatigue and abrasion. As a tubing for instrumentation connection, vent, drain and other general laboratory applications, Tygon S3™ E-3603 Tubing offers superior life, which minimizes the labor and expense of replacement. It can be sterilized through conventional autoclave methods (steam 30 minutes at 15 psi, 121°C) and ethylene oxide.

1

What is this product used for?
  • General laboratory connections
  • Food & beverage
  • Biopharmaceutical analysis
  • Analytical instrumentation
  • Vacuum pumps
  • Ideal for condensers, incubators, desiccators, gas lines and drain lines
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

165°F (74°C)

Brittle Temperature, °F (°C)

-51°F (-46°C)

Specifications

US FDA food contact criteria
(EU) 10/2011 and (EC) 1935/2004
Japanese Food Sanitation Law 370/1959
NSF®-51, Food Equipment Materials
USP <88> Class VI, and/or USP <87>, and/or ISO 10993-5
REACH (EC) 1907/2006

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Bio-based formulation reduces environmental impact.
  • Lot-to-lot consistency for reproducible results.
  • Non-toxic and non-contaminating.
  • Smooth inner wall.
  • Slips easily over fittings and grips securely for simple lab set-ups.
  • No BPA or phthalates intentionally added.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(mm)		 Outside
Diameter
(mm)		 Wall
Thickness
(mm)		 Length
(m)		 Min.
Bend Radius
(mm)		 Max. Working
Pressure
Bars at 23ºC		 Vacuum
Rating
mm of Mercury at 23ºC
ACF1S1502 2mm 4mm 1mm 15m 7mm 2.5 Bar 760mm Hg
ACF1S151 3mm 5mm 1mm 15m 13mm 1.7 Bar 760mm Hg
ACF1S1518 4mm 6mm 1mm 15m 16mm 1.4 Bar 533mm Hg
ACF1S1503 5mm 8mm 1.5mm 15m 19mm 1.6 Bar 760mm Hg
ACF1S1504 6mm 9mm 1.5mm 15m 22mm 1.4 Bar 559mm Hg
ACF1S1506 8mm 12mm 2mm 15m 29mm 1.4 Bar 533mm Hg

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon S3™ E-3603 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.
