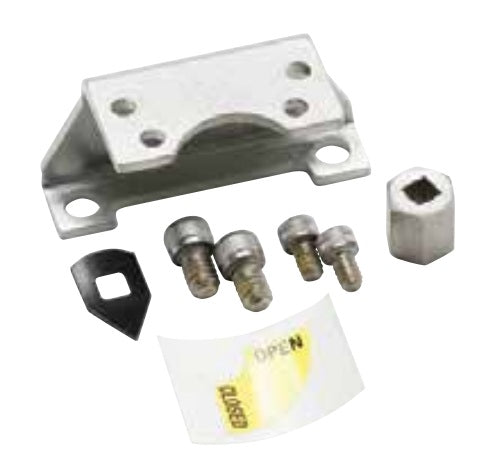

ACT-P-1-KIT by Parker | Actuator Kit | For Use With V502P-4, 6, 8-ACT

ACT-P-1-KIT by Parker | Actuator Kit | For Use With V502P-4, 6, 8-ACT

Save $29.49 Save $29.49
$73.73
$73.73 - $73.73
$73.73
$44.24
$44.24 - $44.24
$44.24

by Parker Hannifin
Ball Valves Rotary Actuator Series Act:Ball Valves Rotary Actuator Series Act KIT
Specifications for Variant SKU: ACT-P-1-KIT Parker
Shape (Orientation): No Orientation
Product Features:
  • One Piece Aluminum Extrusion Body
  • PTFE Seals
  • Stainless Steel Shaft
  • Self Lubricated Vane Seal
  • Anodized Aluminum Extrusion Vane
Specification:
Temperature Range: -40° to +180° F (-40° to +82.2° C)
Pressure Range:
  • Up to 250 PSI (17.2 bar)
  • Vacuum service 28 inches Hg
Part Number For Use With A B C D E' F
ACT-P-1-KIT V502P-4, 6, 8-ACT 10-24 UNC 1/4-20 UNC Bracket .60 Long Coupling Position Indicator Position Label
ACT-P-2-KIT V502P-12, 16-ACT 10-24 UNC 1/4-20 UNC Bracket .55 Long Coupling Position Indicator Position Label

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
