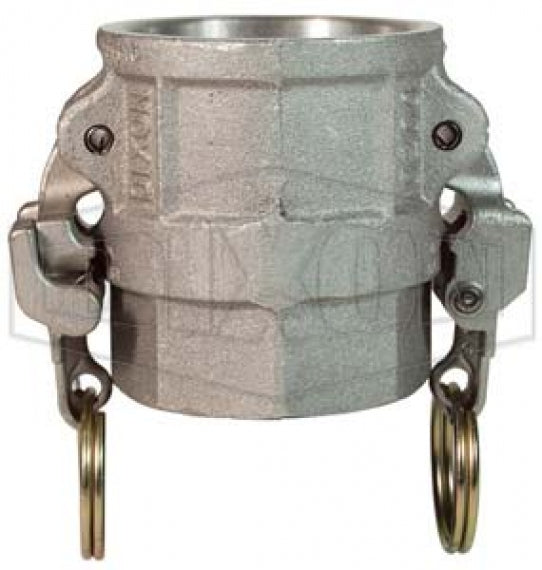

AD150EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 1-1/2" Coupler x 1-1/2" Female NPT | Aluminum

Name: AD150EZ by Dixon Valve | EZ Boss-Lock Cam & Groove Coupler | Type D | 1-1/2" Coupler x 1-1/2" Female NPT | Aluminum
Brand: Dixon
SKU: AD150EZ Dixon
Price: 54.51 USD
Availability: InStock

Save $36.34

$90.85

$90.85 - $90.85

$90.85

$54.51

$54.51 - $54.51

$54.51

Dixon Valve
EZ Boss-Lock Cam & Groove Coupler | Type D | Coupler x Female NPT

Designed for use with liquids.

Specifications for Variant SKU: AD150EZ Dixon
Brand:	EZ Boss-Lock
Shape (Orientation):	Straight
Cam Type:	Type D
Ends Configuration:	1-1/2in Female Cam & Groove, 1-1/2in Female NPT
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile Rubber gasket.
Features:
Resistant to accidental disconnection when dragged. The release lever opens in the direction opposite to the cam arm, so movements that tend to open the release lever also tend to close the cam arm. Rotating action helps keep the locking device free of debris. Designed to protect critical parts from impact and to withstand rugged use.
Safety Notes:
Dixon® and Boss-Lock cam & groove couplings do not interchange in the 8" size. If the rotating lever is not flush with the handle, it is not properly engaged. Under no circumstances should cam and groove couplings be used for compressed air or steam service! Under no circumstances should the EZ Boss-Lock cam arms be used on any fitting not specifically designed for their use. Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F / 21°C with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter. No more fumbling with clamps, wire, clips or pins, just close the handles and the locking mechanism is engaged. Extremely easy to open, the releaser lever is under your thumb when you want to open the fitting, ergonomic.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	316 Stainless Steel Part Number	Heavy Duty 316 Stainless Steel Part Number	Size	Max. Operating Pressure
-	-	RD050EZ	-	3/4" x 1/2"	150 PSI
AD075EZ	BD075EZ	RD075EZ	-	3/4"	250 PSI
AD100EZ	BD100EZ	RD100EZ	-	1"	250 PSI
-	BD125EZ	RD125EZ	-	1-1/4"	250 PSI
AD150EZ	BD150EZ	RD150EZ	-	1-1/2"	250 PSI
AD200EZ	BD200EZ	RD200EZ	-	2"	250 PSI
AD250EZ	BD250EZ	RD250EZ	-	2-1/2"	150 PSI
AD300EZ	BD300EZ	RD300EZ	RD300EZHD	3"	125 PSI RD300EZHD is 400 PSI
AD400EZ	BD400EZ	RD400EZ	RD400EZHD	4"	100 PSI RD400EZHD is 300 PSI
AD400EZP with Paddle Handle	-	-	-	4"	100 PSI
AD500EZ	-	-	-	5"	75 PSI
AD600EZ	-	RD600EZ	RD600EZHD	6"	75 PSI RD600EZHD is 150 PSI
AD800EZ	-	-	-	8"	50 PSI
