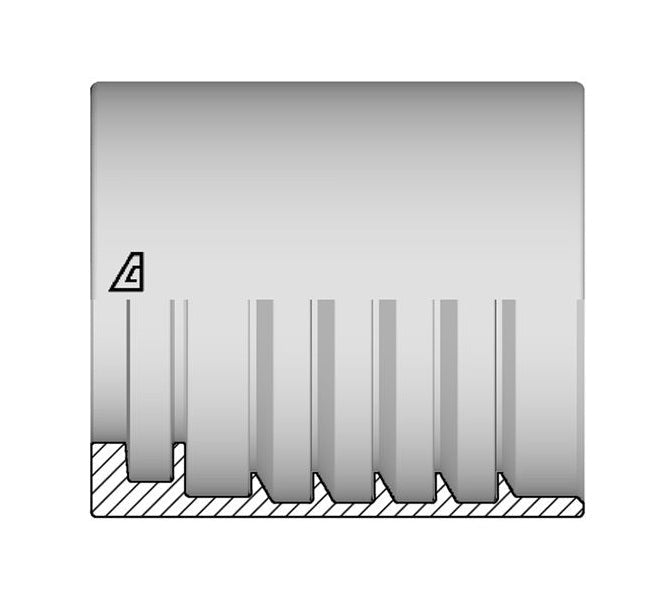

AF2-04 Alfagomma by Kuriyama | A Series / AF2 Series | Two-Piece Non-Skive Ferrule | -04 Hose Dash Size | 1/4" Hose ID | Steel

AF2-04 Alfagomma by Kuriyama | A Series / AF2 Series | Two-Piece Non-Skive Ferrule | -04 Hose Dash Size | 1/4" Hose ID | Steel | Pack of 5

Save $0.72 Save $0.72
$2.52
$2.52 - $2.52
$2.52
$1.80
$1.80 - $1.80
$1.80

Kuriyama of America Inc.
Alfagomma | A Series / AF2 Series | Two-Piece Non-Skive Ferrule
Specifications for Variant SKU: AF2-04 Kuriyama | 5 |
Brand: Alfagomma
Series: A Series, AF2 Series
Material(s): Steel
Compatible with the following Series: TR2MT Series  |   T2SNTT Series
About A Series / AF2 Series Ferules:
  • Two piece non-skive ferrule for use with:
    • "A" insert on double wire braided hydraulic hoses
    • Flexor 2 (TR2MT, T2SNTT)
Features:
  • Alfagomma Top Coat
    • Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards.
    • Over 500 hours corrosion prevention in salt spray fog to white rust.
    • More than 1000 hours corrosion resistance to red rust.
Steel
Part Number		 Stainless Steel
Part Number		 Dash
Size		 Hose ID Size B
OD		 L
Length		 Weight
(in.) (mm) (mm) (mm) lbs/each
AF2-03 - 03 3/16" 4.8mm 21mm 24.0mm 0.06 lbs
AF2-04 AF2-04-SS 04 1/4" 6.4mm 23mm 24.7mm 0.07 lbs
AF2-05 - 05 5/16" 7.9mm 25mm 24.7mm 0.08 lbs
AF2-06 AF2-06-SS 06 3/8" 9.5mm 27mm 29.7mm 0.10 lbs
AF2-08 AF2-08-SS 08 1/2" 12.7mm 30mm 30.5mm 0.12 lbs
AF2-10 AF2-10-SS 10 5/8" 15.9mm 33mm 30.5mm 0.13 lbs
AF2-12 AF2-12-SS 12 3/4" 19.0mm 37mm 36.0mm 0.18 lbs
AF2-16 AF2-16-SS 16 1" 25.4mm 45mm 36.7mm 0.24 lbs
AF2-20 - 20 1-1/4" 31.8mm 56mm 48.6mm 0.45 lbs
AF2-24 - 24 1-1/2" 38.1mm 64mm 48.5mm 0.55 lbs
AF2-32 - 32 2" 50.8mm 76mm 48.6mm 0.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
