AF2-12-SS Alfagomma by Kuriyama | A Series / AF2 Series | Two-Piece Non-Skive Ferrule | -12 Hose Dash Size | 3/4" Hose ID | Stainless Steel

Save $7.26

$25.40

$25.40 - $25.40

$25.40

$18.14

$18.14 - $18.14

$18.14

Kuriyama of America Inc.

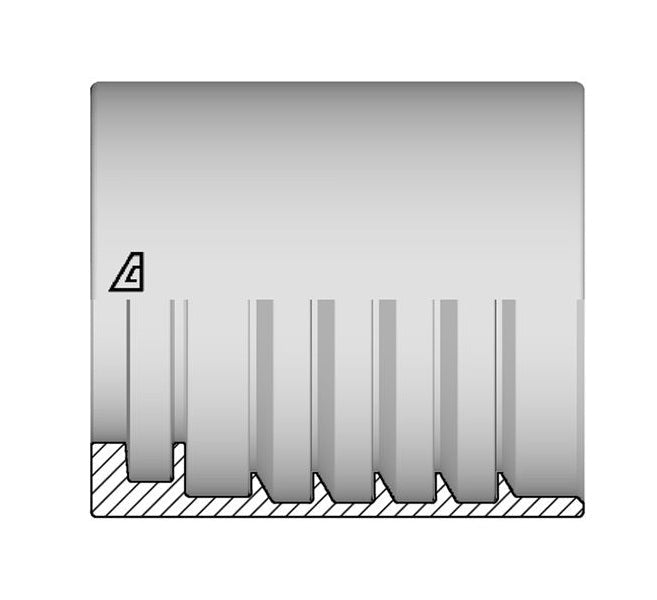

Alfagomma | A Series / AF2 Series | Two-Piece Non-Skive Ferrule

Specifications for Variant SKU: AF2-12-SS Kuriyama
Brand:	Alfagomma
Series:	A Series, AF2 Series
Material(s):	Stainless Steel
Compatible with the following Series:	TR2MT Series \| T2SNTT Series

About A Series / AF2 Series Ferules:
Two piece non-skive ferrule for use with: "A" insert on double wire braided hydraulic hoses Flexor 2 (TR2MT, T2SNTT)
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Stainless Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Stainless Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
AF2-03	-	03	3/16"	4.8mm	21mm	24.0mm	0.06 lbs
AF2-04	AF2-04-SS	04	1/4"	6.4mm	23mm	24.7mm	0.07 lbs
AF2-05	-	05	5/16"	7.9mm	25mm	24.7mm	0.08 lbs
AF2-06	AF2-06-SS	06	3/8"	9.5mm	27mm	29.7mm	0.10 lbs
AF2-08	AF2-08-SS	08	1/2"	12.7mm	30mm	30.5mm	0.12 lbs
AF2-10	AF2-10-SS	10	5/8"	15.9mm	33mm	30.5mm	0.13 lbs
AF2-12	AF2-12-SS	12	3/4"	19.0mm	37mm	36.0mm	0.18 lbs
AF2-16	AF2-16-SS	16	1"	25.4mm	45mm	36.7mm	0.24 lbs
AF2-20	-	20	1-1/4"	31.8mm	56mm	48.6mm	0.45 lbs
AF2-24	-	24	1-1/2"	38.1mm	64mm	48.5mm	0.55 lbs
AF2-32	-	32	2"	50.8mm	76mm	48.6mm	0.70 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
