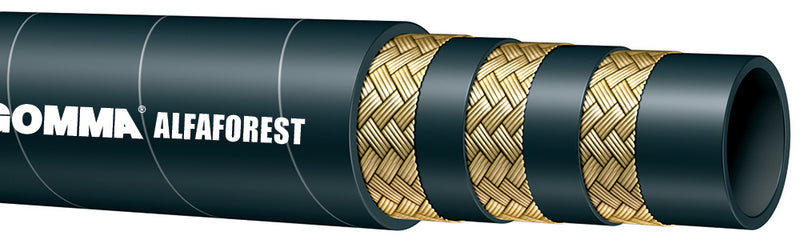

AF3B-06 Alfagomma Alfaforest by Kuriyama | AF3B Series | Minetuff Hose for Hydraulic Systems | 3 Wire Braid | 3/8" ID | 0.85" OD | 7280 PSI

AF3B-06 Alfagomma Alfaforest by Kuriyama | AF3B Series | Minetuff Hose for Hydraulic Systems | 3 Wire Braid | 3/8" ID | 0.85" OD | 7280 PSI

Save $3.00 Save $3.00
$10.49
$10.49 - $10.49
$10.49
$7.49
$7.49 - $7.49
$7.49

Kuriyama of America Inc.
Alfagomma | AF3B Series | Minetuff Hydraulic Hose | 3 Wire Braid

MINETUFF cover is a special cover for hydraulic hose, which dramatically increase resistance to environmental and severe application damages.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: AF3B-06 Kuriyama
Brand: Alfagomma, Alfaforest, Minetuff
Series: AF3B Series
Hose Color(s): Black
Dash Size: -06
Internal Diameter: 0.375in
Outer Diameter: 0.85in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: MSHA IC-152/16
Compatible with the following Series: AS4 Series
Application: Hydraulic system with petroleum or water/glycol based fluids, fuel, lubricating oils. Specially designed for ultra low temperature applications SAE Rating: -
Other Ratings: MSHA IC-152/16 Approved Flame Resistance Tube: Oil resistant ultra low temperature synthetic rubber
Reinforcement: Three high tensile steel braids Cover: Oil, water, ozone and ultra low temperature resistant synthetic rubber
Service Temperature Range: -67°F (-55°C) to +212°F (+100°C) constant operation. Air Maximum Temperature: +160°F (+70°C)
Branding: ALFAGOMMA ALFAFOREST MINETUFF ID…WP MPa 50 (7280 PSI)... MSHA IC-152/16 - Q/YR - MADE IN ITALY
Other Features:
  • Excellent abrasion resistance (10 times higher than EN-ISO 6945 requirements).
  • Reduces the need for any protective sleeve in applications requiring high abrasion resistance.
  • UV and ozone resistance (hose ageing reduction).
Part Number ID OD Max. Working
Pressure		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
AF3B-06 3/8" 9.5mm 0.85" 21.7mm 7280 PSI 4.7" 119.4mm 0.52 lbs/ft

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
