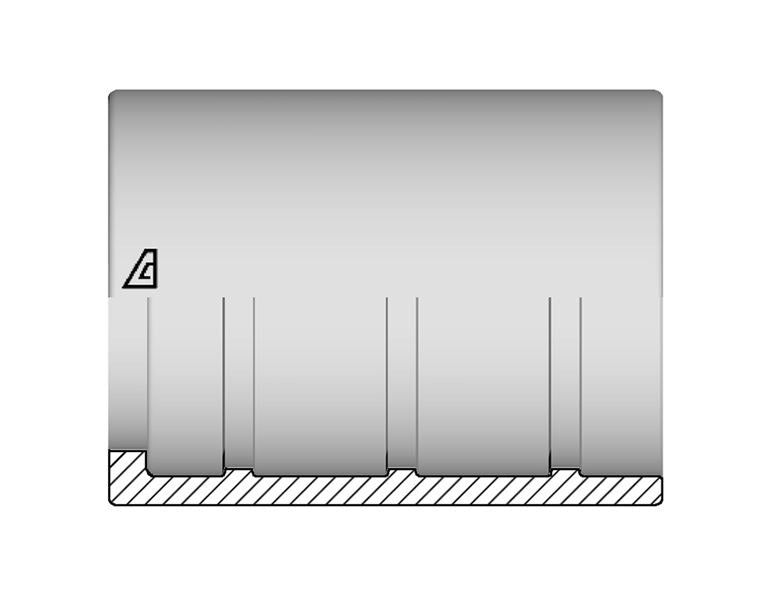

AFX-16-SS Alfagomma by Kuriyama | A Series / AFX Series | Two-Piece Non-Skive Ferrule | -16 Hose Dash Size | 1" Hose ID | Stainless Steel

Save $12.09

$42.32

$42.32 - $42.32

$42.32

$30.23

$30.23 - $30.23

$30.23

Kuriyama of America Inc.
Alfagomma | A Series / AFX Series | Two-Piece Non-Skive Ferrule

Specifications for Variant SKU: AFX-16-SS Kuriyama
Brand:	Alfagomma
Series:	A Series, AFX Series
Material(s):	Steel
Compatible with the following Series:	TR5 Series \| TR4XF Series

About A Series / AFX Series Ferrules:
Two piece non-skive ferrule for use with: "A" insert on textile braided hydraulic hose Flexor 5 (TR5) and Flexor 4 (TR4XF)
Features:
Alfagomma Top Coat Tested in accordance with ASTM B117-03 and UNI ISO 9227 standards. Over 500 hours corrosion prevention in salt spray fog to white rust. More than 1000 hours corrosion resistance to red rust.


Steel Part Number	Stainless Steel Part Number	Dash Size	Hose ID Size		B OD	L Length	Weight
Steel Part Number	Stainless Steel Part Number	Dash Size	(in.)	(mm)	(mm)	(mm)	lbs/each
AFX-03	-	03	3/16"	4.8mm	21mm	21.5mm	0.05 lbs
AFX-04	AFX-04-SS	04	1/4"	6.4mm	23mm	24.7mm	0.07 lbs
AFX-05	AFX-05-SS	05	5/16"	7.9mm	25mm	24.7mm	0.08 lbs
AFX-06	AFX-06-SS	06	3/8"	9.5mm	27mm	29.7mm	0.10 lbs
AFX-08	AFX-08-SS	08	1/2"	12.7mm	30mm	30.5mm	0.11 lbs
AFX-10	AFX-10-SS	10	5/8"	15.9mm	34mm	35.5mm	0.15 lbs
AFX-12	AFX-12-SS	12	3/4"	19.0mm	38mm	36.0mm	0.17 lbs
AFX-16	AFX-16-SS	16	1"	25.4mm	48mm	42.5mm	0.28 lbs
AFX-20	-	20	1-1/4"	31.8mm	53mm	56.5mm	0.42 lbs
AFX-24	-	24	1-1/2"	38.1mm	60mm	61.5mm	0.45 lbs
AFX-32	-	32	2"	50.8mm	76mm	73.5mm	0.82 lbs
AFX-40	-	40	2-1/2"	63.5mm	89mm	85.0mm	1.29 lbs
AFX-48	-	48	3"	76.2mm	108mm	111.0mm	2.40 lbs
