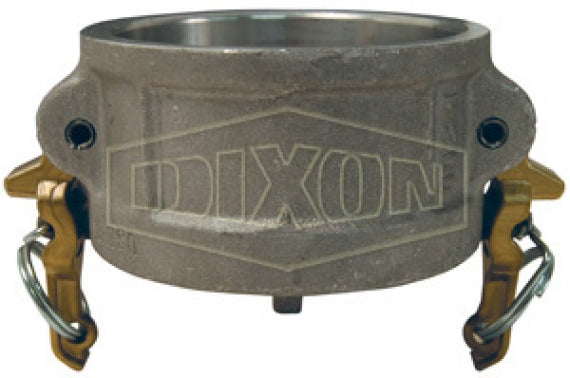

AH125 by Dixon Valve | Boss-Lock Cam & Groove Dust Cap | Type H | 1-1/4" Coupler End | Aluminum

Name: AH125 by Dixon Valve | Boss-Lock Cam & Groove Dust Cap | Type H | 1-1/4" Coupler End | Aluminum
Brand: Dixon
SKU: AH125 Dixon
Price: 45.68 USD
Availability: InStock

Save $30.45

$76.13

$76.13 - $76.13

$76.13

$45.68

$45.68 - $45.68

$45.68

Dixon Valve
Boss-Lock Cam & Groove Fitting | Type H | Dust Cap

Prevents dust and debris from entering the hose, while protecting the coupling from damage when not in use.

Specifications for Variant SKU: AH125 Dixon
Brand:	Boss-Lock
Cam Type:	Other
Ends Configuration:	1-1/4in Female Cam & Groove
Material(s):	Aluminum
Seal Material(s):	Buna-N/Nitrile Rubber

Construction:
Nitrile rubber gasket supplied standard. Supplied with safety clips.
Safety Notes:
Dust caps and dust plugs are not to be used in pressure applications for safety and environmental reasons. Dixon and Boss-Lock cam & groove couplings do not interchange in the 8" size.
Specifications:
Produced to interchange with all product produced to Commercial Item Description A-A-59326D.

356T6 Aluminum Part Number	Brass Part Number	Plated Malleable Iron Part Number	316 Stainless Steel Part Number	Size
-	-	-	RH75BL	3/4"
AH100	BH100	-	RH100BL	1"
AH125	BH125	-	RH125BL	1-1/4"
AH150	BH150	IH150	RH150BL	1-1/2"
AH200	BH200	IH200	RH200BL	2"
AH250	BH250	-	-	2-1/2"
AH300	BH300	IH300	RH300BL	3"
AH400	BH400	IH400	RH400BL	4"
AH600	BH600	IH600	-	6"
AH800	-	-	-	8"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
