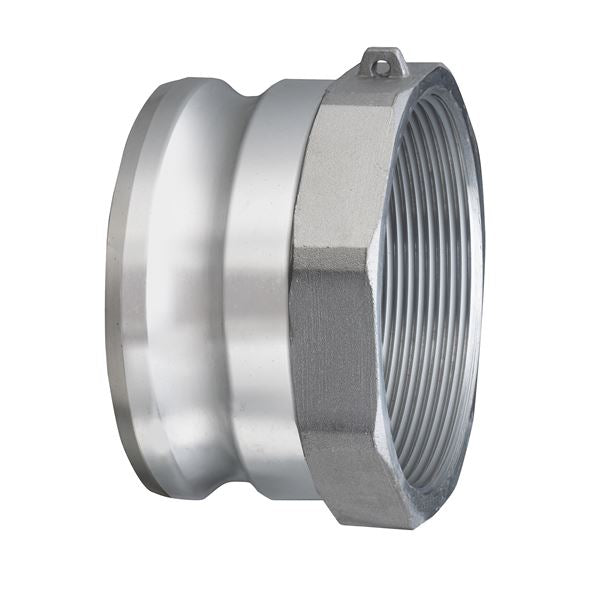

AL-A3040 by Kuriyama | AL-A Series | Part A | Cam & Groove Adapter | 3" Adapter x 4" Female NPT | Aluminum

AL-A3040 by Kuriyama | AL-A Series | Part A | Cam & Groove Adapter | 3" Adapter x 4" Female NPT | Aluminum

Save $11.45 Save $11.45
$37.87
$37.87 - $37.87
$37.87
$26.42
$26.42 - $26.42
$26.42

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-A Series | Part A | Adapter x Female NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-A3040 Kuriyama
Series: AL-A Series
Shape (Orientation): Straight
Cam Type: Type A
Ends Configuration: 3in Male Cam & Groove, 4in Female NPT
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • Easy to install and disassemble.
  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Coupler Size
(in)		 Thread Size
Female NPT
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight Each
(lbs)
AL-A050 1/2" 1/2" 250 PSI B211 Grade 6063 0.10 lbs
AL-A075 3/4" 3/4" 250 PSI B85 Grade 383 0.13 lbs
AL-A100 1" 1" 250 PSI B85 Grade 383 0.12 lbs
AL-A125 1-1/4" 1-1/4" 250 PSI B108-92 356 0.20 lbs
AL-A150 1-1/2" 1-1/2" 250 PSI B85 Grade 383 0.28 lbs
AL-A200 2" 2" 250 PSI B85 Grade 383 0.38 lbs
AL-A2015 2" 1-1/2" 250 PSI B26, Grade 713 0.44 lbs
AL-A2030 2" 3" 250 PSI B26, Grade 713 0.75 lbs
AL-A250 2-1/2" 2-1/2" 150 PSI B85 Grade 383 0.58 lbs
AL-A300 3" 3" 150 PSI B85 Grade 383 0.70 lbs
AL-A3020 3" 2" 150 PSI B26, Grade 713 0.88 lbs
AL-A3040 3" 4" 150 PSI B26, Grade 713 1.37 lbs
AL-A400 4" 4" 150 PSI B85 Grade 383 1.58 lbs
AL-A4030 4" 3" 150 PSI B26, Grade 713 1.61 lbs
AL-A500 5" 5" 75 PSI B108-92 356 1.74 lbs
AL-A600 6" 6" 75 PSI B85 Grade 383 2.95 lbs
AL-A800* 8" 8" 50 PSI B108-92 356 7.58 lbs
AL-A1000 10" 10" 50 PSI B26, Grade 713 9.88 lbs
HDAL-A801* 8" 8" 50 PSI B26, Grade 713 9.48 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-A800. If the measurement is more than 9" it is HDAL-A801.
