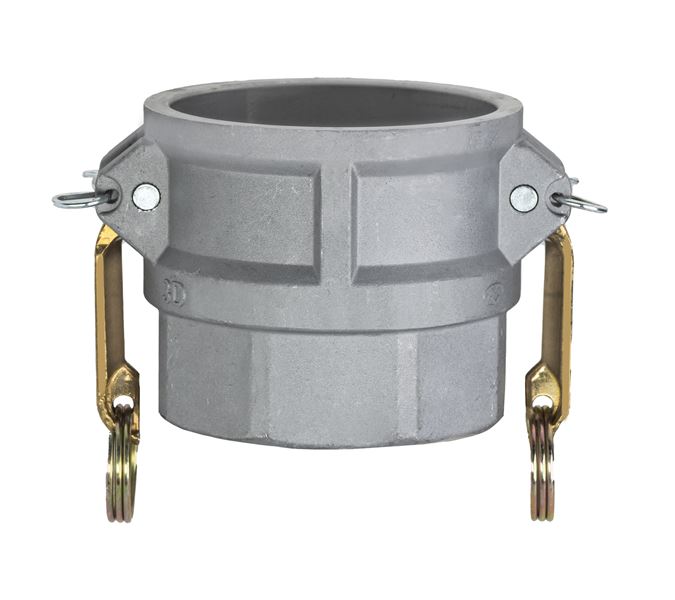

AL-D200 by Kuriyama | AL-D Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Female NPT | Aluminum

AL-D200 by Kuriyama | AL-D Series | Part D | Cam & Groove Adapter | 2" Coupler x 2" Female NPT | Aluminum

Save $9.70 Save $9.70
$30.32
$30.32 - $30.32
$30.32
$20.62
$20.62 - $20.62
$20.62

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | AL-D Series | Part D | Coupler x Female NPT | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-D200 Kuriyama
Series: AL-D Series
Shape (Orientation): Straight
Cam Type: Type D
Ends Configuration: 2in Female Cam & Groove, 2in Female NPT
Material(s): Aluminum, Brass
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design to withstand rigorous applications found in industrial markets.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • 8" & 10" sizes supplied with four brass handles.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • Zinc-plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Coupler Size
(in)		 Thread Size
Female NPT
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight Each
(lbs)
AL-D050 1/2" 1/2" 250 PSI B108-92 356 0.18 lbs
AL-D075 3/4" 3/4" 250 PSI B85 Grade 383 0.22 lbs
AL-D100 1" 1" 250 PSI B85 Grade 383 0.42 lbs
AL-D125 1-1/4" 1-1/4" 250 PSI B108-92 356 0.68 lbs
AL-D150 1-1/2" 1-1/2" 250 PSI B85 Grade 383 0.80 lbs
AL-D200 2" 2" 250 PSI B85 Grade 383 0.92 lbs
AL-D2015 2" 1-1/2" 250 PSI B85 Grade 383 0.88 lbs
AL-D250 2-1/2" 2-1/2" 150 PSI B85 Grade 383 1.18 lbs
AL-D300 3" 3" 150 PSI B85 Grade 383 1.80 lbs
AL-D3020 3" 2" 150 PSI B85 Grade 383 1.65 lbs
AL-D400 4" 4" 150 PSI B85 Grade 383 2.16 lbs
AL-D4030 4" 3" 150 PSI B85 Grade 383 2.49 lbs
AL-D500 5" 5" 75 PSI B108-92 356 3.42 lbs
AL-D600 6" 6" 75 PSI B85 Grade 383 4.24 lbs
AL-D800 8" 8" 50 PSI B108-92 356 9.50 lbs
AL-D1000 10" 10" 50 PSI B26, Grade 713 12.52lbs
HDAL-D801 8" 8" 50 PSI B26, Grade 713 11.77 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-D800. If the measurement is more than 9" it is HDAL-D801.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
