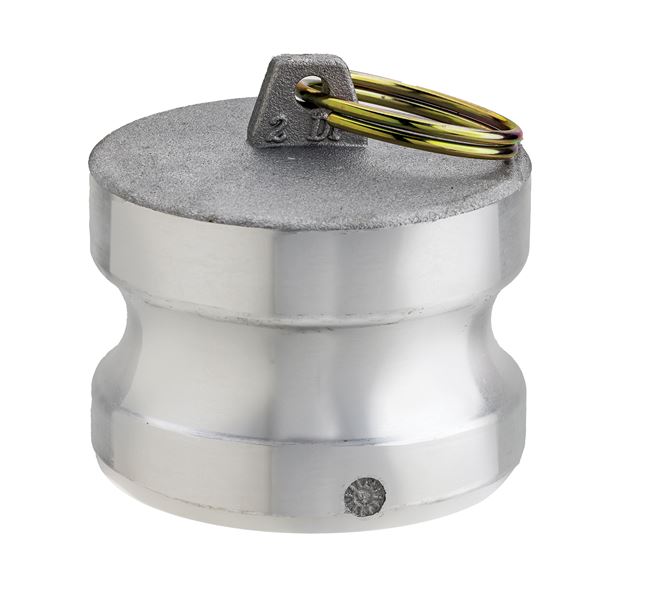

AL-DP250 by Kuriyama | AL-DP Series | Part DP | Cam & Groove Dust Plug | 2-1/2" Size | Aluminum

AL-DP250 by Kuriyama | AL-DP Series | Part DP | Cam & Groove Dust Plug | 2-1/2" Size | Aluminum

Save $7.63 Save $7.63
$20.95
$20.95 - $20.95
$20.95
$13.32
$13.32 - $13.32
$13.32

Kuriyama of America Inc.
Cam & Groove (Camlock) Dust Plug | AL-DP Series | Part DP | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: AL-DP250 Kuriyama
Series: AL-DP Series
Cam Type: Type DP
Ends Configuration: 2-1/2in Male Cam & Groove
Material(s): Aluminum

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Kuriyama offers two 8" coupling styles in aluminum.*
  • Aluminum alloy specially designed for high tensile strength and impact resistance.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM
Specification		 Weight
Each
(lbs)
AL-DP050 1/2" 250 PSI B211 Grade 6063 0.07 lbs
AL-DP075 3/4" 250 PSI B85 Grade 383 0.08 lbs
AL-DP100 1" 250 PSI B85 Grade 383 0.10 lbs
AL-DP125 1-1/4" 250 PSI B108-92 356 0.18 lbs
AL-DP150 1-1/2" 250 PSI B85 Grade 383 0.25 lbs
AL-DP200 2" 250 PSI B85 Grade 383 0.38 lbs
AL-DP250 2-1/2" 150 PSI B85 Grade 383 0.54 lbs
AL-DP300 3" 150 PSI B85 Grade 383 0.74 lbs
AL-DP400 4" 150 PSI B85 Grade 383 1.22 lbs
AL-DP500 5" 75 PSI B108-92 356 1.46 lbs
AL-DP600 6" 75 PSI B85 Grade 383 2.53 lbs
AL-DP800 8" 50 PSI B108-92 356 4.04 lbs
AL-DP1000 10" 50 PSI B26, Grade 713 5.36 lbs
HDAL-DP801 8" 50 PSI B26, Grade 713 5.00 lbs

* DETERMINING 8" COUPLING STYLE: To determine which version you need, please measure the outside diameter of the male coupling. If the measurement is less than 9" it is AL-DP800. If the measurement is more than 9" it is HDAL-DP801.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
