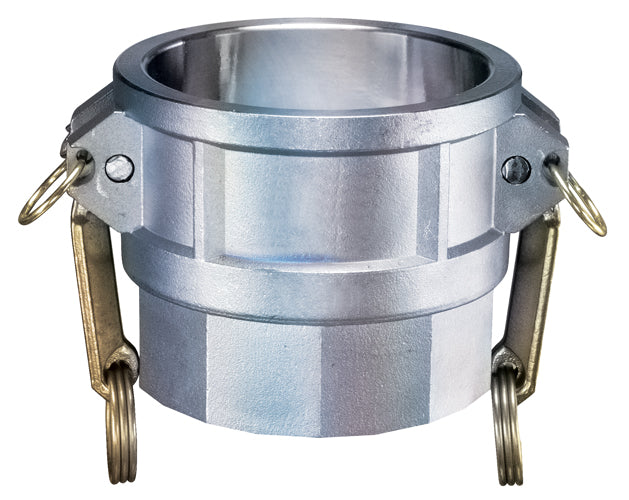

AL-MHD400 Tigerflex® by Kuriyama | AL-MHD Series | Full-Flow 4" Cam & Groove Coupling x 4" Female NPSM | Aluminum

AL-MHD400 Tigerflex® by Kuriyama | AL-MHD Series | Full-Flow 4" Cam & Groove Coupling x 4" Female NPSM | Aluminum

Save $14.67 Save $14.67
$63.20
$63.20 - $63.20
$63.20
$48.53
$48.53 - $48.53
$48.53

Kuriyama of America Inc.
Tigerflex® | AL-MHD Series | Full-Flow Cam & Groove Coupling x Female NPSM

Fits hoses: MULCH, MULCH-LT, BARK, LK and UV1

For use in many industrial applications.
Specifications for Variant SKU: AL-MHD400 Kuriyama
Brand: Tigerflex
Series: AL-MHD Series
Cam Type: Type D
Material(s): Aluminum
Compatible with the following Series: MULCH Series  |   MULCH-LT Series  |   BARK Series  |   LK Series  |   UV1 Series

What are the Features?

  • Full Flow Interior - Prevents material build-up due to the absence of an interior hose shank. Instead, the coupling screws easily and securely over the outside of the hose to provide full flow.
  • Swivel Joint - Stainless steel ball bearings ensure smooth swivel action, reducing instances of hose twisting.
  • Versatile 2-piece Design - Coupling consists of male and female ends connected by NPSM threads.

What are the Materials?

  • Aluminum.
Part Number Description Weight
(lbs)
AL-MHS400 Full-Flow Swivel Coupling Set - 4" Male NPSM 2.67 lbs
AL-MHM400 Full-Flow 4" Coupling Male x 4" Male NPSM 0.93 lbs
AL-MHF400 Full-Flow 4" Coupling Female x 4" Female NPSM 1.23 lbs
AL-MHD400 Full-Flow 4" Cam & Groove Coupling x 4" Female NPSM 2.16 lbs
AL-MHA400 Full-Flow 4" Cam & Groove Adapter x 4" Female NPSM 1.58 lbs
