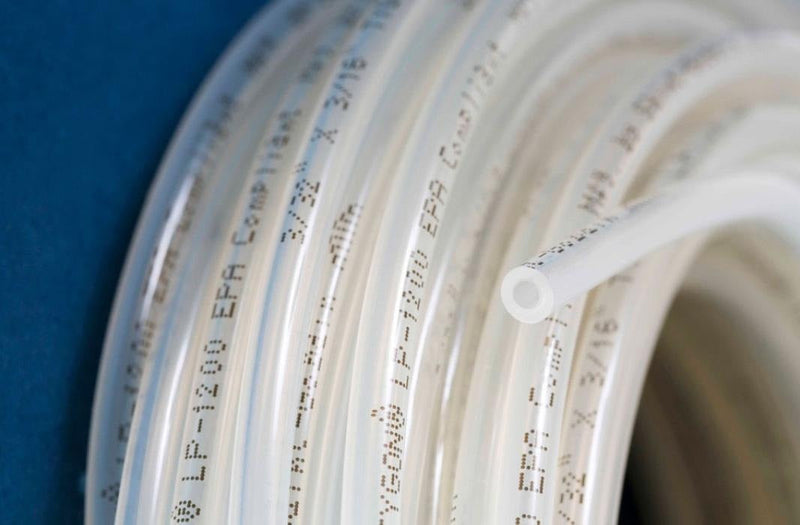

ALR00165 Tygon® by Saint Gobain | Power LP-1200 Series | EPA Compliant Fuel Tubing | 3/32" ID x 3/16" OD x 3/64" Wall | 50ft Length

ALR00165 Tygon® by Saint Gobain | Power LP-1200 Series | EPA Compliant Fuel Tubing | 3/32" ID x 3/16" OD x 3/64" Wall | 50ft Length

Save $14.72 Save $14.72
$51.53
$51.53 - $51.53
$51.53
$36.81
$36.81 - $36.81
$36.81

Saint Gobain
Tygon® Power LP-1200 | EPA Compliant Fuel Tubing

Tygon® Power LP-1200 tubing is ideal for lawn and garden power equipment, lawn and lubricating oil, small engine fuel lines, and grease transfer lines

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: ALR00165 Saint Gobain
Brand: Tygon III
Series: Dairy Tubing
Hose Color(s): White/Off-White
Internal Diameter: 0.09375in
Outer Diameter: 0.1875in
Tubing Construction: Fluoropolymer
Thermoplastic Elastomer Flexible Tubing

Tygon® Power LP-1200 | EPA Compliant Fuel Tubing

Tygon® Power LP-1200 tubing from Saint-Gobain is ideal for lawn and garden power equipment, lawn and lubricating oil, small engine fuel lines, and grease transfer lines, and it is specially designed to meet evaporative emission standards of 15g/m²/day. This patented tubing’s robust, multi-layer construction is extremely tight fitting and resistant to swelling, hardening and cracking caused by hydrocarbon-based fluids.

1

What is this product used for?
  • Brush cutters
  • Chainsaws
  • Cut-off machines
  • Earth/ice augers
  • Edgers
  • Engine drills
  • Hedge and weed trimmers
  • Leaf blowers
  • Pole pruners
  • Split-boom products
  • Tillers
  • Not recommended for reuse in higher temperature applications
2

What are the key specifications?
Tube

High purity fluoropolymer inner liner

Cover

N/A

Reinforcement

None

Colors

Translucent

Maximum Recommended Operating Temp. °F (°C)

180°F (82°C)

Brittleness Temp. °F (°C)

-20°F (-28°C)

Specifications

Meets new EPA and CARB evaporative emission standards of 15g/m2/day

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Transparent and easy to diagnose fuel flow or leak problems.
  • Excellent fitting retention and 100% seal for optimum safety.
  • Superior flexibility and easy assembly, routing and optimized fuel pick-up.
  • Excellent elasticity and prevents “necking” from over-stretching during installation.
  • Submersible and applicable with most fuel application.
  • Superior fuel resistance and compatible with ethanol-enhanced fuels and worry-free operation.
  • High purity fluoropolymer inner liner and reduces the risk of fuel system fouling from extractable solids found in typical rubber products.
4

Which sizes or configurations are available?
Part Number Inside
Diameter
(in.)		 Outside
Diameter
(in.)		 Wall
Thickness
(in.)		 Length Min. Bend
Radius		 Max.
Working
Pressure		 Vacuum
Rating
ALR00700 2/25" 7/50" 3/100" 50ft 1/4" 70 PSI 29.9 inHG
ALR00165 3/32" 3/16" 3/64" 50ft 1/4" 65 PSI 29.9 inHG
ALR00007 1/8" 1/4" 1/16" 50ft 3/8" 60 PSI 29.9 inHG
ALR00012 3/16" 5/16" 1/16" 50ft 1/2" 45 PSI 29.9 inHG
ALR00017 1/4" 3/8" 1/16" 50ft 5/8" 30 PSI 29.9 inHG

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® Power LP-1200 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
