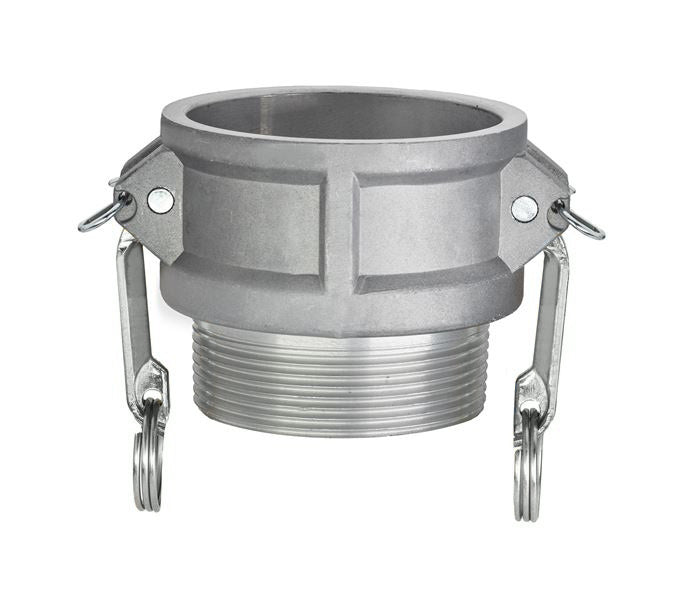

ALSH-B250 by Kuriyama | ALSH-B Series | Part B | Cam & Groove Adapter | 2-1/2" Coupler x 2-1/2" Male NPT | Aluminum / SS Handles

ALSH-B250 by Kuriyama | ALSH-B Series | Part B | Cam & Groove Adapter | 2-1/2" Coupler x 2-1/2" Male NPT | Aluminum / SS Handles

Save $10.83 Save $10.83
$36.40
$36.40 - $36.40
$36.40
$25.57
$25.57 - $25.57
$25.57

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | ALSH-B Series | Part B | Coupler x Male NPT | Aluminum with SS Handles

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: ALSH-B250 Kuriyama
Series: ALSH-B Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 2-1/2in Female Cam & Groove, 2-1/2in Male NPT
Material(s): Aluminum, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with stainless steel handles which are preferred in agriculture markets.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • 304 stainless steel handles, handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
ALSH-B100 1" 250 PSI B85 Grade 383 0.36 lbs
ALSH-B125 1-1/4" 250 PSI B108-92 356 0.62 lbs
ALSH-B150 1-1/2" 250 PSI B85 Grade 383 0.70 lbs
ALSH-B200 2" 250 PSI B85 Grade 383 0.86 lbs
ALSH-B250 2-1/2" 150 PSI B85 Grade 383 1.02 lbs
ALSH-B300 3" 150 PSI B85 Grade 383 1.56 lbs
ALSH-B400 4" 150 PSI B85 Grade 383 2.42 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
