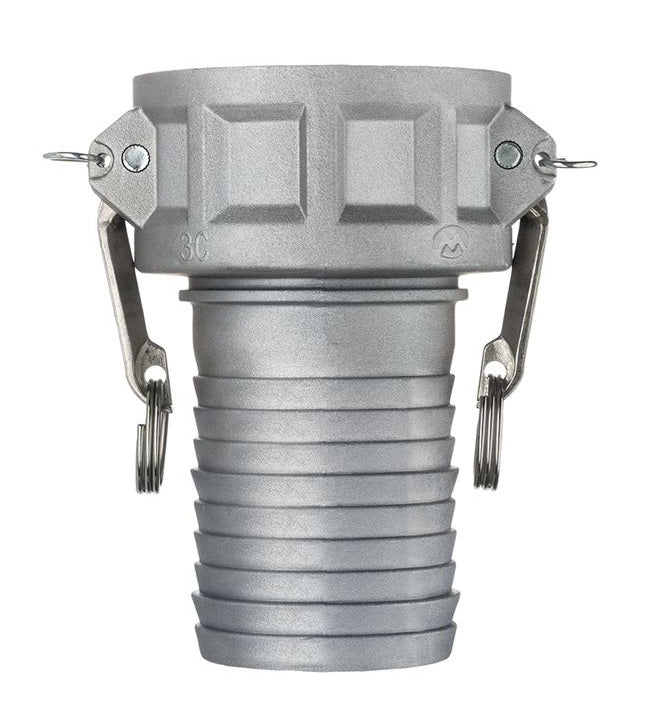

ALSH-C125 by Kuriyama | ALSH-C Series | Part C | Cam & Groove Fitting | 1-1/4" Coupler x 1-1/4" Hose Barb | Aluminum / SS Handles

Save $8.26

$23.65

$23.65 - $23.65

$23.65

$15.39

$15.39 - $15.39

$15.39

Kuriyama of America Inc.
Cam & Groove (Camlock) Fitting | ALSH-C Series | Part C | Coupler x Hose Barb | Aluminum with SS Handles

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.

Specifications for Variant SKU: ALSH-C125 Kuriyama
Series:	ALSH-C Series
Shape (Orientation):	Straight
Cam Type:	Type C
Ends Configuration:	1-1/4in Female Cam & Groove, 1-1/4in Hose Barb
Material(s):	Aluminum, 304 Stainless Steel
Seal Material(s):	Buna-N/Nitrile Rubber

What are the Applications?

Kuriyama Camlock Couplings are intended for use in many industrial applications.
Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

High quality design made to withstand rigorous applications found in industrial markets.
Tri-Couple design available in 1-1/2", 2", 2-1/2", 3", 4" sizes.
Hose shanks specially designed for easy assembly with Tigerflex™ hoses.
Aluminum alloy specially designed for high tensile strength and impact resistance.
Supplied with stainless steel handles which are preferred in agriculture markets.

What are the Materials?

ASTM aluminum alloy.
Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
304 stainless steel handles, handle pins, pull rings, and safety clips.
Buna-N gasket included.

Part Number	Size (in)	PSI Rating at 70°F	ASTM Specification	Weight Each (lbs)
ALSH-C100	1"	250 PSI	B85 Grade 383	0.42 lbs
ALSH-C125	1-1/4"	250 PSI	B108-92 356	0.68 lbs
ALSH-C150*	1-1/2"	250 PSI	B85 Grade 383	0.74 lbs
ALSH-C200*	2"	250 PSI	B85 Grade 383	0.98 lbs
ALSH-C250*	2-1/2"	150 PSI	B85 Grade 383	1.28 lbs
ALSH-C300*	3"	150 PSI	B85 Grade 383	2.20 lbs
ALSH-C400*	4"	150 PSI	B85 Grade 383	3.16 lbs

* Designates Tri-Couple fitting.

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
