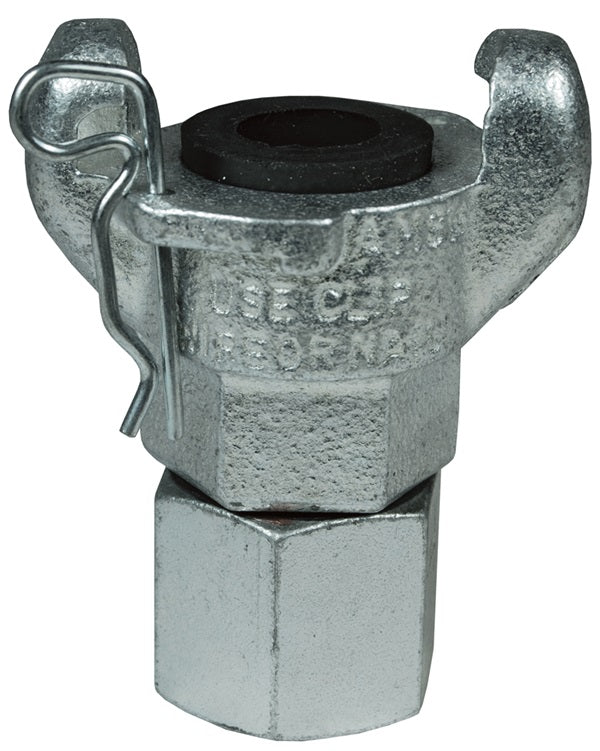

AM8SWIV Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 3/4" Swivel Female NPT | Iron

AM8SWIV Air King® by Dixon Valve | Pneumatic Fitting | 2-Lug Hose End | Chicago Style x 3/4" Swivel Female NPT | Iron

Save $36.49 Save $36.49
$91.22
$91.22 - $91.22
$91.22
$54.73
$54.73 - $54.73
$54.73

Dixon Valve
Air King® Pneumatic Fitting | 2-Lug Hose End | Chicago Style x Swivel Female NPT

Air King is for air and water service only.

Interchanges with other Air King fittings.
Specifications for Variant SKU: AM8SWIV Dixon
Shape (Orientation): Straight
Ends Configuration: 2-Lug Chicago, 3/4in Female NPT
Material(s): Iron
Seal Material(s): Rubber
Features:
  • Interchange with other Air King fittings and include a heavy-duty, free-turning joint that swivels under pressure to prevent hose kinking.
  • Supplied with safety clip.
  • Supplied with rubber washer, part # AWR4
Use:
  • Use of supplied safety clip guarantees the fittings are properly connected because the safety pin will not go through the holes in mating fittings until couplings are locked in place. Only one Air King safety clip or wire type retainer is required for each Air King universal coupling.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
Safety Notes:
  • Never use any Air King coupling for steam service!
  • Air King is for air and water service ONLY.
  • The use of an Air King safety clip or wire type retainer is necessary to ensure Air King universal couplings will not become accidentally disconnected.
  • To provide protection against coupling breakage and related hazards, Dixon recommends the use of a whip hose.
  • Caution: Must use safety clips.
Iron
Part Number		 Swivel Male NPT
AM8SWIV 3/4"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
