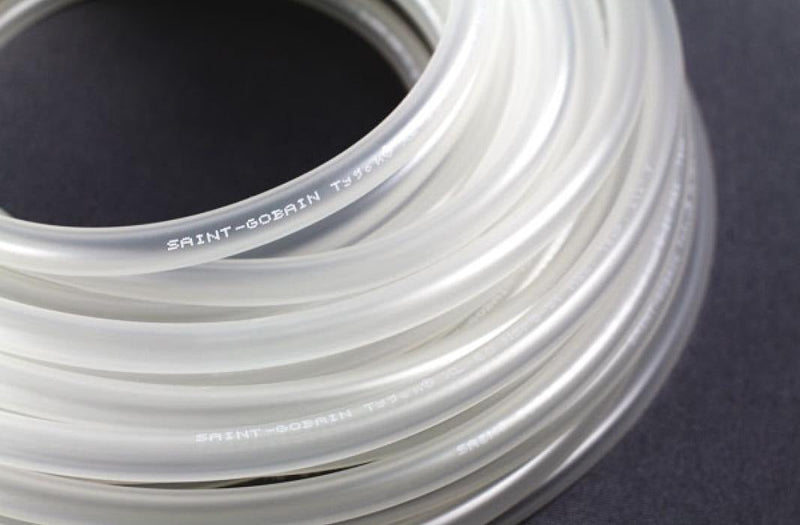

AN800053 Tygon® by Saint Gobain | XL-60 | Flexible Food & Beverage Dispensing Tubing | 3/4" ID x 1" OD x 1/8" Wall | 50' Package Length

Name: AN800053 Tygon® by Saint Gobain | XL-60 | Flexible Food & Beverage Dispensing Tubing | 3/4" ID x 1" OD x 1/8" Wall | 50' Package Length
Brand: Saint-Gobain
SKU: AN800053 Saint Gobain
Price: 310.87 USD
Availability: InStock

Save $124.35

$435.22

$435.22 - $435.22

$435.22

$310.87

$310.87 - $310.87

$310.87

Saint Gobain
Tygon® XL-60 | Flexible Food & Beverage Dispensing Tubing

Tygon® XL-60 clear peristaltic pump tubing from Saint-Gobain is ideal for food and beverage dispensing.

No by the foot sales. This is a Packaged Length product.

Package Quantity: 50 FT

Specifications for Variant SKU: AN800053 Saint Gobain
Brand:	Tygon
Series:	XL-60
Hose Color(s):	Clear/Semi-Clear
Internal Diameter:	0.75in
Outer Diameter:	1in
Tubing Construction:	Thermoplastic Elastomer
Applicable Specs & Approvals:	Applicable FDA Requirements, FDA 21 CFR Part 177.1210, NSF 51

Thermoplastic Elastomer Flexible Tubing

Tygon® XL-60 | Reinforced Food & Beverage Process Tubing

Tygon® XL-60 clear peristaltic pump tubing from Saint-Gobain is ideal for food and beverage dispensing. It has the ability to maintain pump life for more than 500 hours and, with a durometer hardness of Shore A 60, it is extremely flexible and long lasting – reducing downtime due to pump tubing failure. This high-performance tubing is an excellent alternative to silicones and PVC when longer pump life is required.

1

What is this product used for?

Peristaltic pumps
Food and beverage transfer
Cleaning chemicals

2

What are the key specifications?

Tube

Thermoplastic Elastomer

Cover

Thermoplastic Elastomer

Reinforcement

None

Colors

Clear

Maximum Recommended Operating Temp. °F (°C)

250°F (121°C)

Brittleness By Impact Temp. °F (°C)

-87°F (-66°C)

Specifications

FDA 21 CFR 177.2600
NSF®-51
EU 10/2011

WARNING:

Not intended as an implant material!

3

What are the main product features?

Long flex life in peristaltic pumps.
Temperature resistant up to 250°F.
Low extractables.
Alternative to PVC.
Clear and flexible.
Resistant to ozone, oxygen, and sunlight aging, as well as chemicals and a wide range of fluids, including acids and bases.

4

Which sizes or configurations are available?

Part Number	Inside Diameter (in.)	Outside Diameter (in.)	Wall Thickness (in.)	Bend Radius (in.)	Max. Working Pressure at 73 deg. F (PSI)	Vacuum Rating at 73 deg. F (in. Hg)	Length
AN800003	1/16"	3/16"	1/16"	1/2"	35 PSI	29.9 in. Hg	50ft
AN800007	1/8"	1/4"	1/16"	1/2"	20 PSI	29.9 in. Hg	50ft
AN800012	3/16"	5/16"	1/16"	3/4"	13 PSI	29.9 in. Hg	50ft
AN800017	1/4"	3/8"	1/16"	1"	15 PSI	29.9 in. Hg	50ft
AN800022	5/16"	7/16"	1/16"	1-1/2"	11 PSI	20.0 in. Hg	50ft
AN800027	3/8"	1/2"	1/16"	2"	11 PSI	15.0 in. Hg	50ft
AN800038	1/2"	3/4"	1/8"	2-1/2"	15 PSI	29.9 in. Hg	50ft
AN800053	3/4"	1"	1/8"	4"	11 PSI	20.0 in. Hg	50ft
AN800046	5/8"	7/8"	1/8"	3"	11 PSI	20.0 in. Hg	50ft

i

Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?

PDF

Saint Gobain Tygon® XL-60 Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
