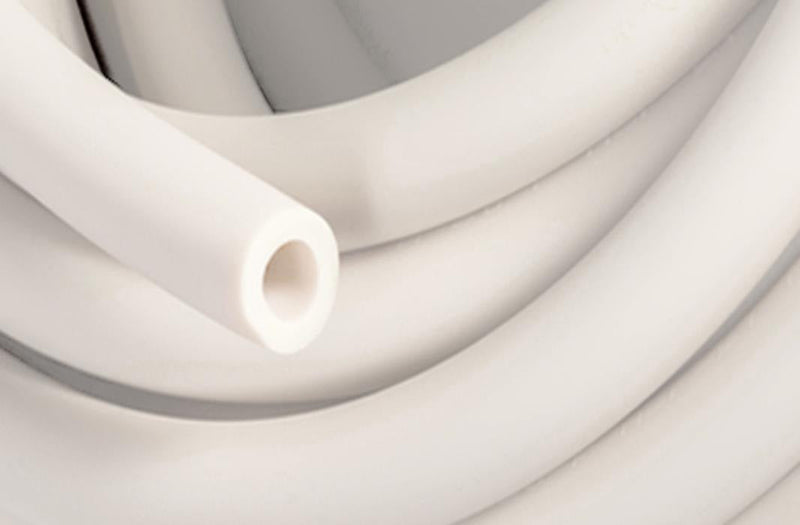

AND00029 Tygon® by Saint Gobain | E-65-F | Food and Beverage Dispensing Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length

AND00029 Tygon® by Saint Gobain | E-65-F | Food and Beverage Dispensing Tubing | 3/8" ID x 5/8" OD x 1/8" Wall | 50' Package Length

Save $199.86 Save $199.86
$199.86
$199.86 - $199.86
$199.86
$0.00
$0.00 - $0.00
$0.00

Saint Gobain
Tygon® E-65-F | Food and Beverage Dispensing Tubing

Tygon® E-65-F tubing from Saint-Gobain is formulated to withstand a temperature range from -112°F to 275°F and will not crack or deteriorate when used in demanding food and beverage applications.

No by the foot sales. This is a Packaged Length product.
Specifications for Variant SKU: AND00029 Saint Gobain
Brand: Tygon
Series: E-65-F
Hose Color(s): White/Off-White
Internal Diameter: 0.375in
Outer Diameter: 0.625in
Tubing Construction: Special Proprietary
Applicable Specs & Approvals: Applicable FDA Requirements, EU Food Contact Regulation (EU) No 10/2011, NSF 51, Regulation (EC) No 1935/2004
Thermoplastic Elastomer Flexible Tubing

Tygon® E-65-F | Food and Beverage Dispensing Tubing

Formulated to withstand a temperature range from -112°F to 275°F, Tygon® Food E-65-F tubing will not crack or deteriorate when used in demanding food and beverage applications. Extremely flexible, it resists kinks and retains its shape making installation quick and easy. Its excellent flexural fatigue resistance makes it the absolute best choice for use in peristaltic pumps found in dispensing equipment.

1

What is this product used for?
  • Food and Beverage Dispensing Equipment
2

What are the key specifications?
Tube

N/A

Cover

N/A

Reinforcement

None

Colors

Opaque White

Maximum Recommended Operating Temp. °F (°C)

275°F (135°C)

Low Temp Flexibility °F (°C)

-112°F (-80°C)

Specifications

NSF-51
FDA
Regulation (EC) No 1935/2004,(EU) 10/2011

WARNING:

Not intended as an implant material!

3

What are the main product features?
  • Taste and odor free.
  • Long flex life in peristaltic pumps.
  • Temperature resistant from -112°F to 275°F.
  • Withstands pasteurization temperatures.
  • Compatible with milk-based products, frozen yogurt, and soft-serve ice cream.
  • Chemically compatible with a wide range of cleaners and disinfectants.
4

Which sizes or configurations are available?
Part Number Inside
Diameter		 Outside
Diameter		 Wall
Thickness		 Min.
Bend Radius		 Vacuum
Rating
at 73°F 		Max. Working
Pressure*
at 73°F		 Max. Working
Pressure*
at 180°F		 Length
in mm in mm in mm in mm inHg mmHg PSI bar PSI bar
AND00003 1/16" 1.60mm 3/16" 4.76mm 1/16" 1.60mm 3/16" 4.76mm 29.9 inHg 760 mmHg 32 PSI 2.20 bar 19 PSI 1.31 bar 50ft
AND00007 1/8" 3.17mm 1/4" 6.35mm 1/16" 1.60mm 5/8" 15.88mm 29.9 inHg 760 mmHg 19 PSI 1.31 bar 11 PSI 0.76 bar 50ft
AND00012 3/16" 4.76mm 5/16" 7.94mm 1/16" 1.60mm 1-1/8" 28.57mm 29.9 inHg 760 mmHg 15 PSI 1.03 bar 8 PSI 0.55 bar 50ft
AND00017 1/4" 6.35mm 3/8" 9.53mm 1/16" 1.60mm 1" 25.4mm 29.9 inHg 760 mmHg 13 PSI 0.90 bar 8 PSI 0.55 bar 50ft
AND00019 1/4" 6.35mm 1/2" 12.70mm 1/8" 3.17mm 5/8" 15.88mm 29.9 inHg 760 mmHg 19 PSI 1.31 bar 11 PSI 0.76 bar 50ft
AND00022 5/16" 7.94mm 7/16" 11.11mm 1/16" 1.60mm 2-1/2" 68.50mm 29.9 inHg 760 mmHg 11 PSI 0.76 bar 6 PSI 0.41 bar 50ft
AND00027 3/8" 9.52mm 1/2" 12.70mm 1/16" 1.60mm 3-1/4" 82.55mm 20.0 inHg 508 mmHg 10 PSI 0.69 bar 5 PSI 0.34 bar 50ft
AND00029 3/8" 9.53mm 5/8" 15.88mm 1/8" 3.18mm 1-7/8" 47.63mm 25.0 inHg 635 mmHg 11 PSI 0.76 bar 5 PSI 0.34 bar 50ft
AND00038 1/2" 12.70mm 3/4" 19.05mm 1/8" 3.17mm 1-3/4" 44.45mm 29.9 inHg 760 mmHg 13 PSI 0.90 bar 6 PSI 0.41 bar 50ft
AND00046 5/8" 15.87mm 7/8" 22.22mm 1/8" 3.17mm 2-1/2" 68.50mm 29.9 inHg 760 mmHg 11 PSI 0.76 bar 6 PSI 0.41 bar 50ft
AND00053 3/4" 19.05mm 1" 25.40mm 1/8" 3.18mm 3-3/8" 85.73mm 25.0 inHg 635 mmHg 10 PSI 0.69 bar 6 PSI 0.41 bar 50ft
i
Working pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

How is this product sold?

No by the foot sales. This is a Packaged Length product.

6

Where can I find product documents?
PDF

Saint Gobain Tygon® E-65-F Data Sheet

Consult product literature, manufacturer documentation, or supporting documents for additional information.

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
