Dixon Valve & Coupling

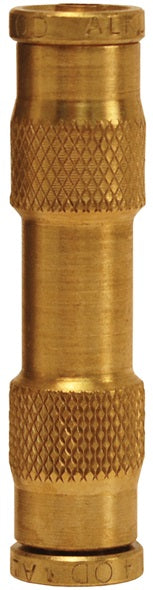

D.O.T. Push-In Fitting | Union Connectors | Tube End x Tube End

Recommended for use with J844 Air Brake Tubing.
Specifications for Variant SKU: AQ62DOT4 Dixon
Shape (Orientation): Straight
Ends Configuration: 1/4in Push-to-Connect, 1/4in Push-to-Connect, Some Ends Match
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass CA360
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. x Tube O.D.
AQ62DOT4 1/4" x 1/4"
AQ62DOT6 3/8" x 3/8"
