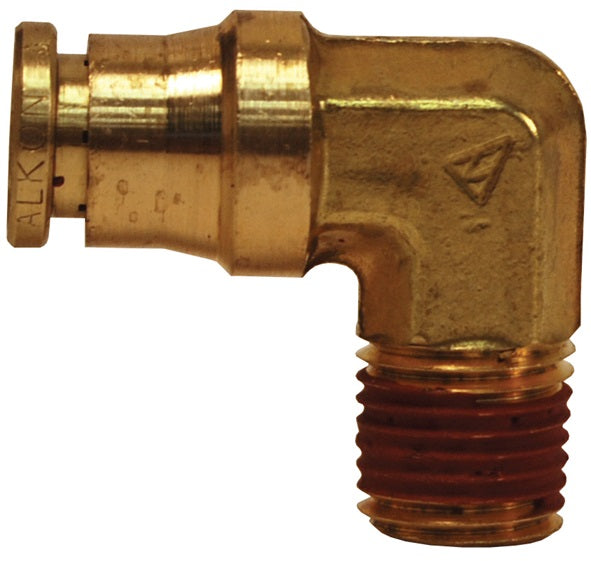

AQ69DOT4X4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male 90° Elbow | 1/4" Male NPTF x 1/4" Tube OD | Brass CA377

AQ69DOT4X4 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male 90° Elbow | 1/4" Male NPTF x 1/4" Tube OD | Brass CA377

Save $3.71 Save $3.71
$9.27
$9.27 - $9.27
$9.27
$5.56
$5.56 - $5.56
$5.56

Dixon Valve & Coupling
D.O.T. Push-In Fitting | Male 90° Elbow | Male NPTF x Tube End

Recommended for use with J844 Air Brake Tubing.
Specifications for Variant SKU: AQ69DOT4x4 Dixon
Shape (Orientation): 90 Degree
Ends Configuration: 1/4in Push-to-Connect, 1/4in Male NPT
Material(s): Brass
Seal Material(s): Buna-N/Nitrile Rubber
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass Brass CA377
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. Male NPTF
AQ69DOT4X2 1/4" 1/8"
AQ69DOT4X4 1/4" 1/4"
AQ69DOT6X4 3/8" 1/4"
