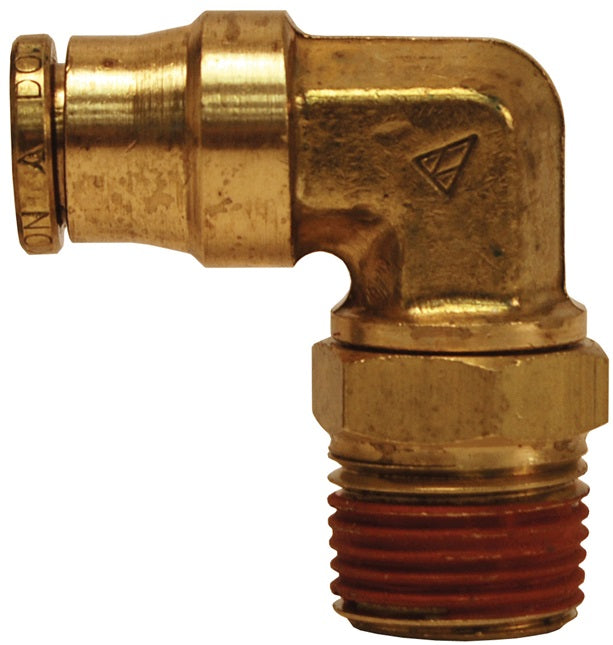

AQ69DOTS4X6 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Swivel 90° Elbow | 3/8" Male NPTF x 1/4" Tube OD | Brass CA377

AQ69DOTS4X6 by Dixon Valve | D.O.T. Push-In Pneumatic Fitting | Male Swivel 90° Elbow | 3/8" Male NPTF x 1/4" Tube OD | Brass CA377

Save $6.51 Save $6.51
$16.27
$16.27 - $16.27
$16.27
$9.76
$9.76 - $9.76
$9.76

Dixon Valve & Coupling
D.O.T. Push-In Fitting | Male Swivel 90° Elbow | Male NPTF x Tube End

Recommended for use with J844 Air Brake Tubing.
Specifications for Variant SKU: AQ69DOTS4X6 Dixon
Shape (Orientation): Straight
Ends Configuration: 3/8in Male NPTF, 1/4in Push-to-Connect
Material(s): Brass
Special Properties: Swivel
Features:
  • Pre-applied thread sealant (Loctite 516) on male pipe threads.
Materials:
  • Brass Brass CA377
  • Seal: Nitrile Rubber
Specifications:
  • Meets D.O.T FMVSS 571.106 and SAE J1131, SAE J2494-1 and SAE J2494-3
  • Temperature range: -40°F to 220°F (-40°C to 104°C)
Use:
  • Fittings are suitable for use up to the maximum working pressure of the plastic tubing used.
  • Suitable for vacuum service.
  • SAE J844 compatible tubing.
Part Number Tube O.D. Male NPTF
AQ69DOTS4X2 1/4" 1/8"
AQ69DOTS4X4 1/4" 1/4"
AQ69DOTS4X6 1/4" 3/8"
AQ69DOTS6X4 3/8" 1/4"
AQ69DOTS6X6 3/8" 3/8"
