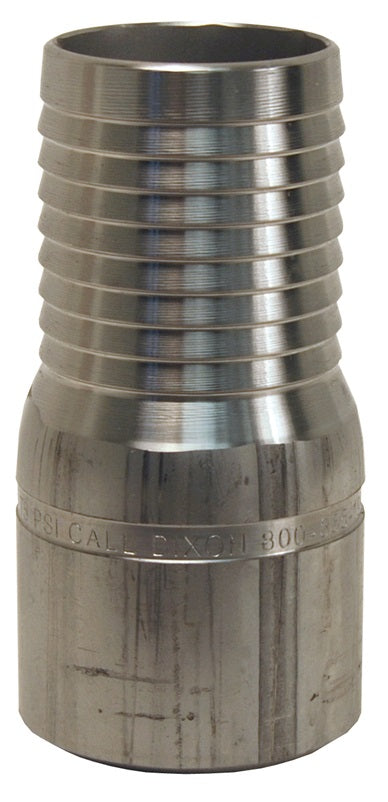

ASTB10 by Dixon Valve | King Combination Nipple | Beveled End | 1" Beveled End x 1" Hose ID | Aluminum

ASTB10 by Dixon Valve | King Combination Nipple | Beveled End | 1" Beveled End x 1" Hose ID | Aluminum

Save $12.37 Save $12.37
$30.93
$30.93 - $30.93
$30.93
$18.56
$18.56 - $18.56
$18.56

Dixon Valve
King Combination Nipple | Beveled End | Beveled End x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.
Specifications for Variant SKU: ASTB10 Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Weld End, 1in Hose Barb
Material(s): Aluminum
Safety Notes:
  • King Combination Nipples are not recommended for steam.
  • The working pressure may vary with the construction of the hose, the type of clamping system used and the application.
  • In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.
Unplated Steel
Part Number		 316 Stainless Steel
Part Number		 Aluminum
Part Number		 Hose ID
STB1 - - 1/2"
STB5 RSTB5 - 3/4"
STB1 RSTB10 ASTB10 1"
STB15 RSTB15 ASTB15 1-1/4"
STB20 RSTB20 ASTB20 1-1/2"
STB25 RSTB25 ASTB25 2"
STB30 RSTB30 ASTB30 2-1/2"
STB35 RSTB35 ASTB35 3"
STB40 RSTB40 ASTB40 4"
STB50 - ASTB50 5"
STB60 RSTB60 ASTB60 6"
STB80 RSTB80 - 8"
STB100 - - 10"
STB120 - - 12"
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
