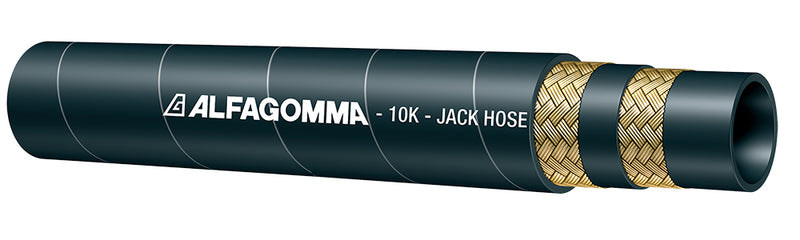

AT10KJ-04 Alfagomma by Kuriyama | AT10KJ Series | 2-Wire Braid | Jack Hose | 1/4" ID | 0.51" OD | 10,000 PSI

AT10KJ-04 Alfagomma by Kuriyama | AT10KJ Series | 2-Wire Braid | Jack Hose | 1/4" ID | 0.51" OD | 10,000 PSI

Save $1.24 Save $1.24
$4.33
$4.33 - $4.33
$4.33
$3.09
$3.09 - $3.09
$3.09

Kuriyama of America Inc.
Alfagomma | AT10KJ Series | 10,000 PSI Jack Hose

For static pressure hydraulic lines. Fuel oil, antifreeze solutions, air and water.

Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking equipment.

This item is sold as Bulk Length and thus may come in multiple sections.
Specifications for Variant SKU: AT10KJ-04 Kuriyama
Brand: Alfagomma
Series: AT10KJ Series
Hose Color(s): Black
Dash Size: -04
Internal Diameter: 0.25in
Outer Diameter: 0.51in
Tubing Construction: Synthetic Rubber
Cover Construction: Synthetic Rubber
Applicable Specs & Approvals: IJ 100
Compatible with the following Series: B Series
Application: Static pressure hydraulic lines. Fuel oil, antifreeze solutions, air and water. SAE Rating: -
Other Ratings: Meets Material Handling Institute specification IJ 100 for hydraulic hose and assemblies used with jacking equipment. Tube: Oil-resistant synthetic rubber.
Reinforcement: Two high tensile steel braids. Cover: Abrasion, ozone and hydrocarbon resistant smooth synthetic rubber.
Service Temperature Range: -40°F (-40°C) to +212°F (+100°C) constant operation Air Maximum Temperature: -
Branding: Alfagomma - Italy - 10K Jack Hose - size WP 10,000 psi (70 Mpa) MSHA IC-152/16
Part Number ID OD Max. Working
Pressure*		 Min Bend
Radius		 Weight
(in.) (mm) (in.) (mm) PSI (in.) (mm) (lbs./ft.)
AT10KJ-04 1/4" 6.4mm 0.51" 13.0mm 10000 2.0" 50.8mm 0.18 lbs/ft
AT10KJ-06 3/8" 9.5mm 0.66" 18.8mm 10000 2.2" 55.9mm 0.26 lbs/ft

* Minimum burst pressure 2-to-1 safety factor.
