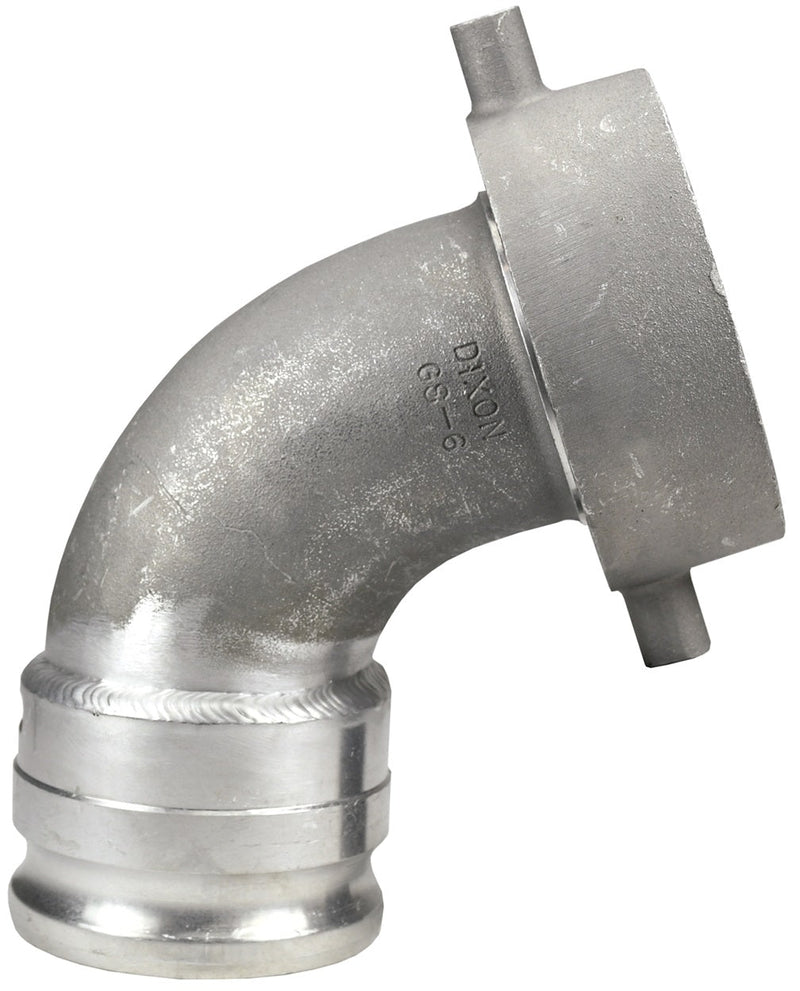

ATCA40 by Dixon Valve | Railroad Tank Car Connection | Style A | 110° Elbow | 4" Male Adapter x 5" Swivel Nut | Aluminum

Save $45.93

$516.68

$516.68 - $516.68

$516.68

$470.75

$470.75 - $470.75

$470.75

Dixon Valve
Railroad Tank Car Connection | Style A | Male Adapter x Swivel Nut

Quantity

Specifications for Variant SKU: ATCA40 Dixon
Series:	Style A
Shape (Orientation):	110 Degree
Material(s):	Aluminum

Features:
All swivel nuts have standard 5" Railroad Tank Car thread.
Construction:
Nitrile Rubber gasket in the threaded end.
How It Works:
To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down. Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Safety Notes:
Stainless steel railroad tank car connections are not compatible with aluminum and brass.

316 Stainless Steel Part Number	Aluminum Part Number	Male Adapter	Swivel Nut	Elbow
RTCA30	-	3"	5"	120°
RTCA40*	ATCA40	4"	5"	110°

* Parts are produced as a welded fabrication.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
