ATSC8-MG by Parker | TrueSeal™ Accessories | 1/2" Cartridge Insert | Acetal | Pack of 50

ATSC8-MG by Parker | TrueSeal™ Accessories | 1/2" Cartridge Insert | Acetal | Pack of 50

Save $50.67 Save $50.67
$126.67
$126.67 - $126.67
$126.67
$76.00
$76.00 - $76.00
$76.00

by Parker Hannifin
TrueSeal™ Cartridge Inserts:TSC - Cartridge Insert

Package Quantity: 50 Units

Specifications for Variant SKU: ATSC8-MG Parker | 50 |
Brand: TrueSeal™
Series: TSC Series
Shape (Orientation): No Orientation
Material(s): Acetal
Seal Material(s): EPDM
Special Properties: Food Grade, Filtration

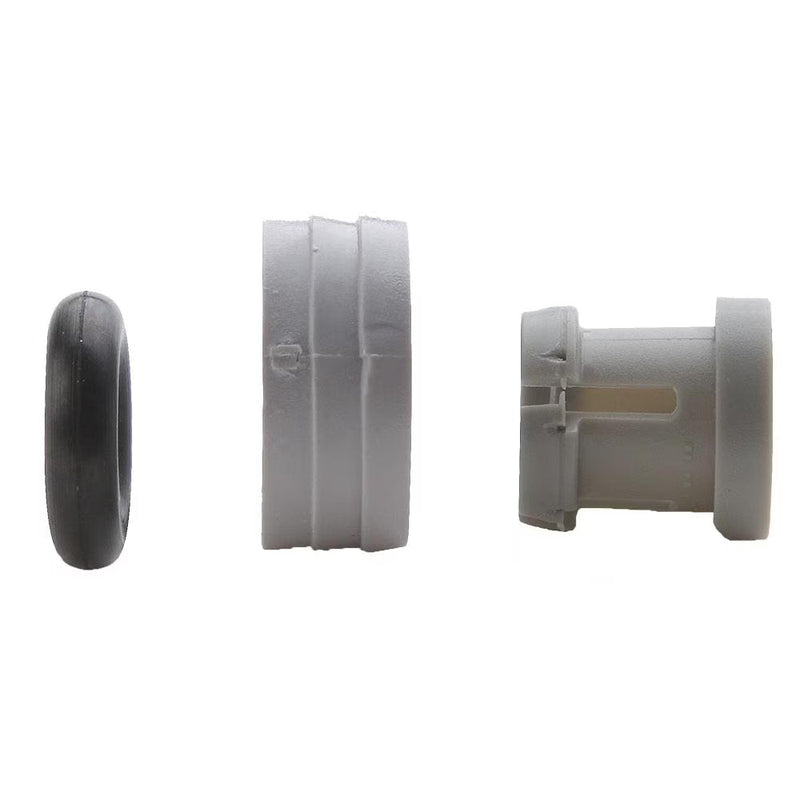

Parker TrueSeal™ Cartridge Inserts: Allow you to machine or mold a tube connection into your equipment or components. By using cartridge inserts, you will reduce your material and assembly costs, reduce potential leak paths, and give your equipment a new, clean profile by eliminating the need for threaded connections. TSC Cartridge Inserts consist of 1 O-ring, 1 cartridge, and 1 collet.
*Cartridge inserts are rated at 150 PSI in ports dimensioned as above and having Noryl as the receiving material. Other materials may have different ratings and require different port dimensions. Consult the Fluid System Connectors Division when using polypropylene, unfilled polypropylene, ABS or Nylon.
Part Number with EPDM Seal Nom. Tube O.D. A Diameter ±002 B Diameter ±003 C Diameter ±003 D Diameter Maximum E Depth ±002 F Depth ±002 G Depth ±002 H Centerline of Ports Minimum
ATSC4-MG 1/4" .528" .421" .260" .19" .230" .435" .600" .670"
ATSC6-MG 3/8" .632" .545" .385" .31" .280" .455" .705" .790"
ATSC8-MG 1/2" .774" .668" .510" .41" .315" .510" .810" 1.250"
