ATW00017 Versilon™ by Saint Gobain | 1/4" I.D. x 3/8" O.D. x 1/16" Wall | ReVive 100% Pre-Consumer Recycled Tubing | 50' Package Length

ATW00017 Versilon™ by Saint Gobain | 1/4" I.D. x 3/8" O.D. x 1/16" Wall | ReVive 100% Pre-Consumer Recycled Tubing | 50' Package Length

Save $8.33 Save $8.33
$75.00
$75.00 - $75.00
$75.00
$66.67
$66.67 - $66.67
$66.67

Saint Gobain

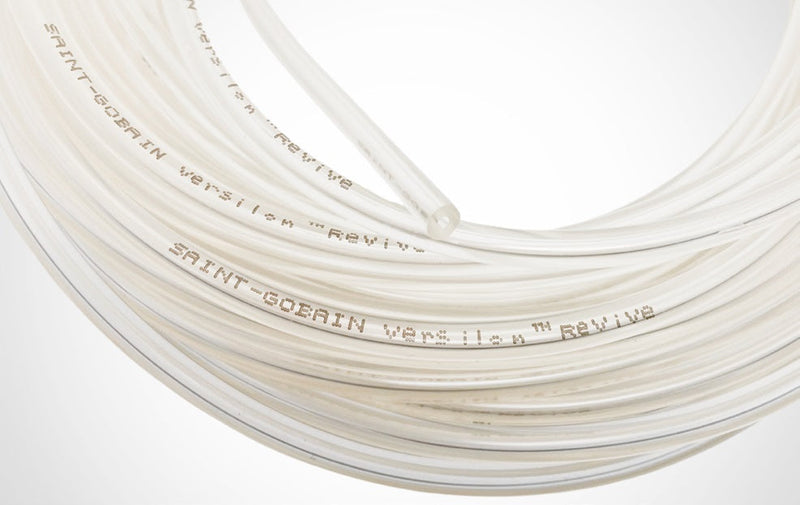

Versilon™ ReVive | 100% Pre-Consumer Recycled Tubing

Versilon™ ReVive is a translucent thermoplastic elastomer (TPE) tubing made with 100% pre-consumer recycled content for fluid management of aggressive chemicals with excellent seal and weld properties. It is chemically resistant to a wide range of fluids including acids and bases, and is also resistant to ozone, oxygen, and sunlight aging.


Package Quantity: 50 ft

Specifications for Variant SKU: ATW00017 Saint Gobain
Brand: Versilon
Series: ReVive
Internal Diameter: 0.25in
Outer Diameter: 0.375in
Tubing Construction: Thermoplastic Elastomer

SPECIFICATIONS

Application: Chemical Transfer, Soap and Detergent Transfer, Analytical Instruments SAE Rating: N/A
Other Ratings: N/A Tube: Thermoplastic Elastomer (TPE)
Reinforcement: N/A Cover: N/A
Temperature Range: -76 deg. F (-60 deg. C) to 275 deg. F (135 deg. C) Durometer Hardness
(Shore A) 15 sec :		 55
Color: Translucent Specifications N/A
Literature: Versilon™ ReVive 100% Pre-Consumer Recycled Tubing (PDF)
Other Features:
  • Excellent chemical resistance.
  • Produced with 100% pre-consumer recycled content.
  • Translucent, resulting in a visible fluid path.
  • Flexible for ease of assembly.
  • Sealable and weldable.
About:
  • Recycled materials can sometimes bring a level of concern regarding the raw material sources and associated lot traceability. For this reason, Saint-Gobain has vertically integrated the manufacturing process of Versilon™ ReVive. Production is carefully controlled by collecting specific materials from internal processes through extrusion of the final product. Inspection and lot traceability information is readily accessible as new batch numbers are assigned. The packaging of this material was also taken into consideration - to minimize the use of extraneous materials, tubing is packaged in a cardboard box without plastic wrap. The box contains up to 55% of recycled content and is 100% recyclable.
Part Number Inside Diameter
(in.)		 Outside Diameter
(in.)		 Wall Thickness
(in.)		 Min. Bend Radius
(in.)		 Max. Working Pressure
at 73 deg. F
(PSI)*		 Vacuum Rating
at 73 deg. F
(in. Hg)		 Length
ATW00003 1/16" 3/16" 1/16" 0.25" 26 PSI 29.9 in. Hg 50ft
ATW00007 1/8" 1/4" 1/16" 0.25" 17 PSI 29.9 in. Hg 50ft
ATW00012 3/16" 5/16" 1/16" 0.50" 13 PSI 29.9 in. Hg 50ft
ATW00017 1/4" 3/8" 1/16" 1" 9 PSI 25 in. Hg 50ft
ATW00022 5/16" 7/16" 1/16" 1.5" 9 PSI 15 in. Hg 50ft
ATW00027 3/8" 1/2" 1/16" 1.5" 8 PSI 15 in. Hg 50ft
ATW00038 1/2" 3/4" 1/8" 1.75" 10 PSI 29.9 in. Hg 50ft
ATW00046 5/8" 7/8" 1/8" 2.5" 8 PSI 20 in. Hg 50ft
ATW00053 3/4" 1" 1/8" 4" 6 PSI 10 in. Hg 50ft

*Working Pressures are calculated at a 1:5 ratio relative to burst pressure using ASTM D1599.

Unless otherwise noted, all tests were conducted at room temperature 73°F (23°C). Values show were determined on 0.075" (6,35 mm) thick extruded strip, 1/4" ID x 3/8" OD extruded tubing, 0.075" (6,35 mm) thick molded ASTM plaques or molded ASTM durometer buttons.

Saint Gobain

Saint Gobain

Saint-Gobain Performance Plastics is one of the world’s leading producers of engineered, high-performance polymer products, and serves virtually every major industry across the globe. Saint-Gobain Performance Plastics businesses support these key industries with advanced technology polymer products for the most demanding applications.
