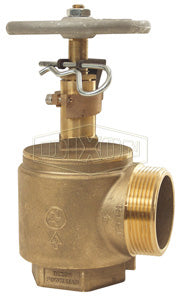

AVAPR150F-I Dixon Cast Brass Global Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet

AVAPR150F-I Dixon Cast Brass Global Adjustable Pressure Restricting Angle Valve - 1-1/2" Female NPT Inlet x 1-1/2" Male NST(NH) Outlet

Save $14.06 Save $14.06
$126.55
$126.55 - $126.55
$126.55
$112.49
$112.49 - $112.49
$112.49

Dixon Fire Fittings
Global Adjustable Pressure Restricting Angle Valves

Used when flowing water pressure needs to be controlled.
Specifications for Variant SKU: AVAPR150F-I Dixon
Shape (Orientation): 90 Degree
Material(s): Brass
Features:
  • NFPA requires restricting valves where the inlet pressure exceeds 100 PSI. Unlike the pressure regulating type of valve, the restricting valve has no effect on the static pressure of a system.
  • Preset orifices restrict the volume of water thereby lowering the pressure of the flowing water; NFPA requires restricting valves where inlet pressure exceeds 100 PSI.
  • Restricting valve has no effect on the static pressure of a system.
  • Restricting device can be manually by passed if required by opening the valve fully: pull the pin allowing the yoke to fall back from the valve stem which allows valve to be fully opened, when valve needs to be restricted again, slide the yoke back into place to be NFPA compliant.
Size A
(male)		 B
(female)		 C
(closed)		 C
(open)		 D E
(male)		 F
(female)
1-1/2" 2-7/32" 2-11/64" 7-53/64" 8-39/64" 3-3/4" 2-7/16" 2-13/32"
2-1/2" 3-7/32" 3-3/16" 9-25/32" 11-13/32" 5" 3-19/32" 3-17/32"
Part Number Inlet Outlet Weight
(Lbs.)
AVAPR150F-I 1-1/2" Female NPT 1-1/2" Male NST (NH) 5.0000
AVAPRF150-I 1-1/2" Female NPT 1-1/2" Female NPT 5.0000
AVAPRF250-I 2-1/2" Female NPT 2-1/2" Female NPT 12.0000
